Ocular IQ Home Solar 7kW Single Phase Solar EV Charger

Ocular IQ Home Solar Single Phase Charges Your Car on Sunshine, Not the Grid

The Ocular IQ Home Solar is a solar EV charger that watches your power meter and feeds your excess solar into the car instead of exporting it. The CT clamp is in the box, the app is free, and once it's set up you don't touch it. The sun comes out, the car charges.

Why the Ocular IQ Home Solar 7kW earns its spot

• Solar charging built in. One CT clamp included, no extra hardware.
• Automatic load balancing: backs off when the oven and aircon are running so your main breaker never trips.
• 7.2kW single phase, up to 32A. Full battery overnight, or free top-ups all day.
• Wi-Fi, Ethernet and 4G. Control it from anywhere, not just the driveway.
• RFID card, app, button or plug and charge to start a session.
• Cable or socket. Pick your variant above.
• IP55 and IK10 rated, 2 year warranty, extendable to 5 years.

How a IQ solar EV charger works

Your solar makes more power than the house uses in the middle of the day. Normally the surplus goes back to the grid for a small feed-in credit. The IQ Home Solar measures that surplus through the CT clamp on your incoming supply and matches the charging rate to it. More sun, faster charging. Cloud comes over, it slows down. The app offers charging modes to suit how much solar you make, from solar-only through to full speed off the grid when you're in a hurry.

EV charger with a CT clamp: what's included

One current transformer clips around the active conductor at your meter, no wiring to cut. It comes with a 20m signal lead, extendable to 100m with insulated twisted pair, rated to 100A with a 16mm internal diameter (fits up to 50mm² XLPE). That covers the vast majority of home switchboards.

EV charger with load balancing: protecting your switchboard

The same CT clamp tells the charger what the whole house is drawing. If you're close to your main breaker's limit, the charger drops its current until the load eases, then ramps back up. It means you can run a 32A charger on a home that couldn't otherwise spare it, without an upgrade at the pole.

Cable or socket: which variant

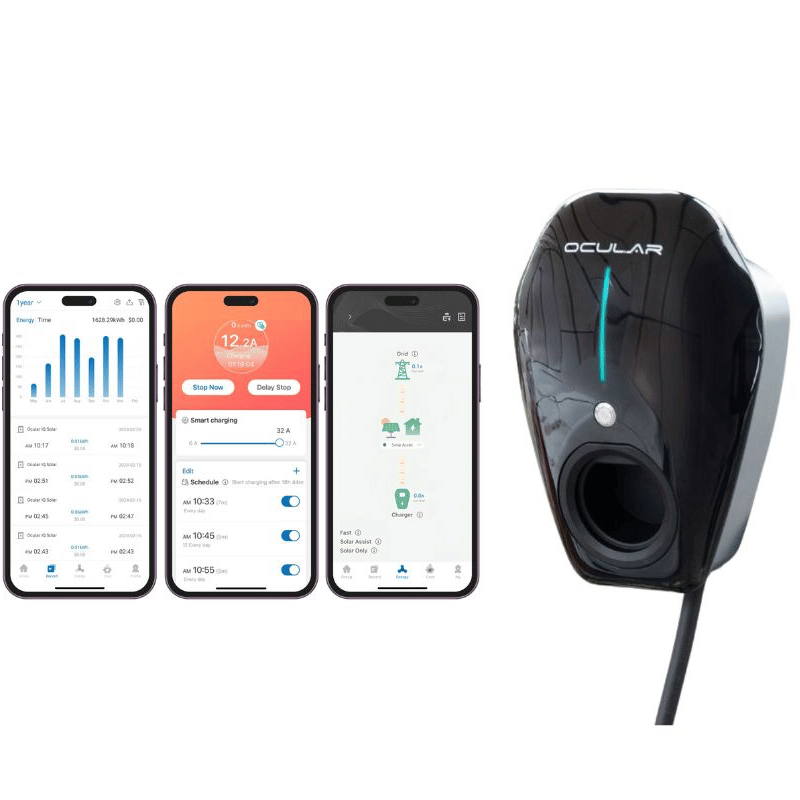

5m Type 2 cable

Permanently attached. Park, plug in, walk away. Best for a dedicated garage bay.

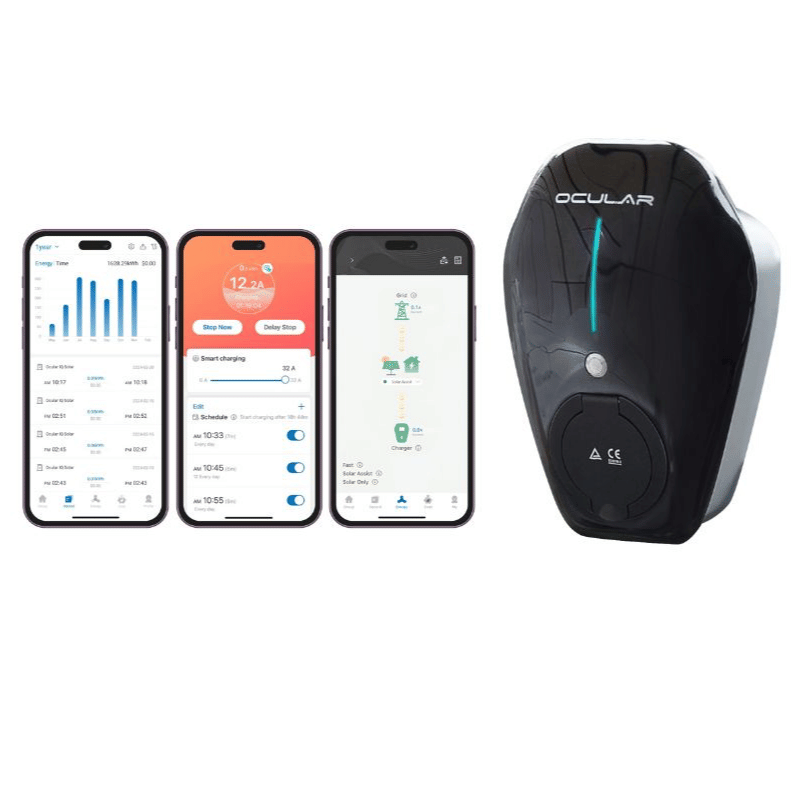

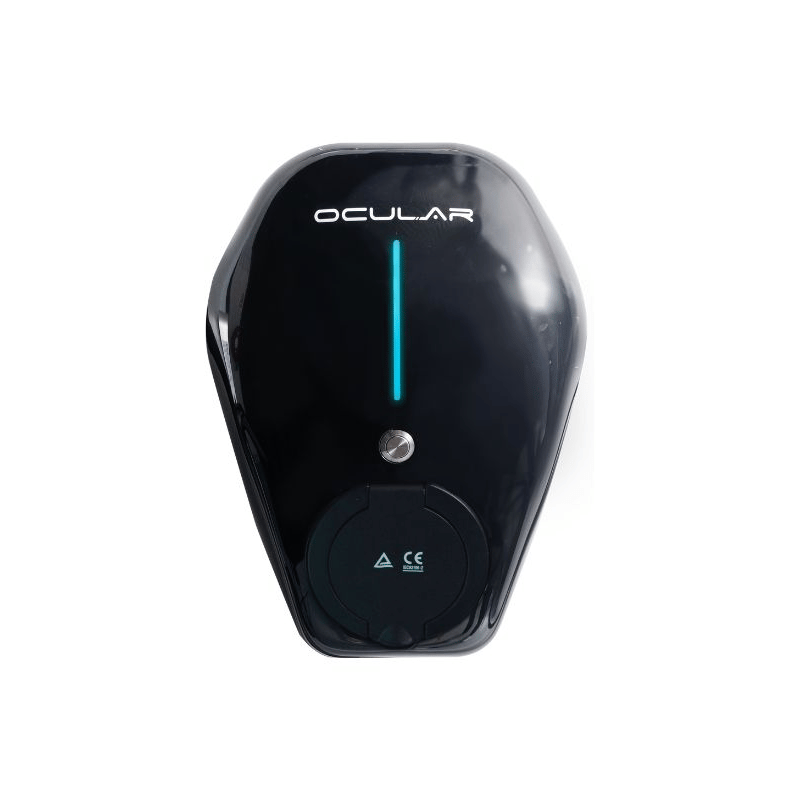

Type 2 socket

No fixed cable. You supply a Type 2 to Type 2 lead in whatever length suits. Tidier on the wall, and the pick for a shared driveway or if you'd rather not have 5m of cable hanging up.

What's in the box

• Ocular IQ Home Solar 7kW charging station (cable or socket)
• 1 x 100A current transformer with 20m signal lead
• Wall mounting bracket and fixings
• Installation guide

Also fits the Ocular IQ charger stand if you've got no wall near the bay.

Specifications

• Power output: 7.2kW, 1 phase, 230V ± 20%, 32A max
• Connector: 5m tethered Type 2 cable, or Type 2 socket
• CTs included: 1, 100A, 20m lead (extendable to 100m)
• Display: LED indicators
• Start methods: app, physical button, RFID (ISO14443 Type A), plug and charge
• Connectivity: Ethernet, Wi-Fi, 4G. Modbus TCP/IP
• OCPP: 1.6J and 2.0.1 (firmware upgrade required)
• Load control: built-in via CT, or Ocular Load Controller / OCPP smart profiles
• RCD: 30mA AC plus 6mA DC
• Energy meter: integrated
• Rating: IP55, IK10
• Operating range: -30°C to +50°C
• Size: 398 x 285 x 226 mm (H x W x D)
• Weight: 4.5 kg (cable), 1.5 kg (socket)
• Certification: CE, IEC/EN 61851-1, IEC 61008-1-A1, IEC 62955-1-A1, IEC/EN 61851-21-2, IEC 62196-2, RCM
• Warranty: 2 years, extendable up to 5 years in total

Installation

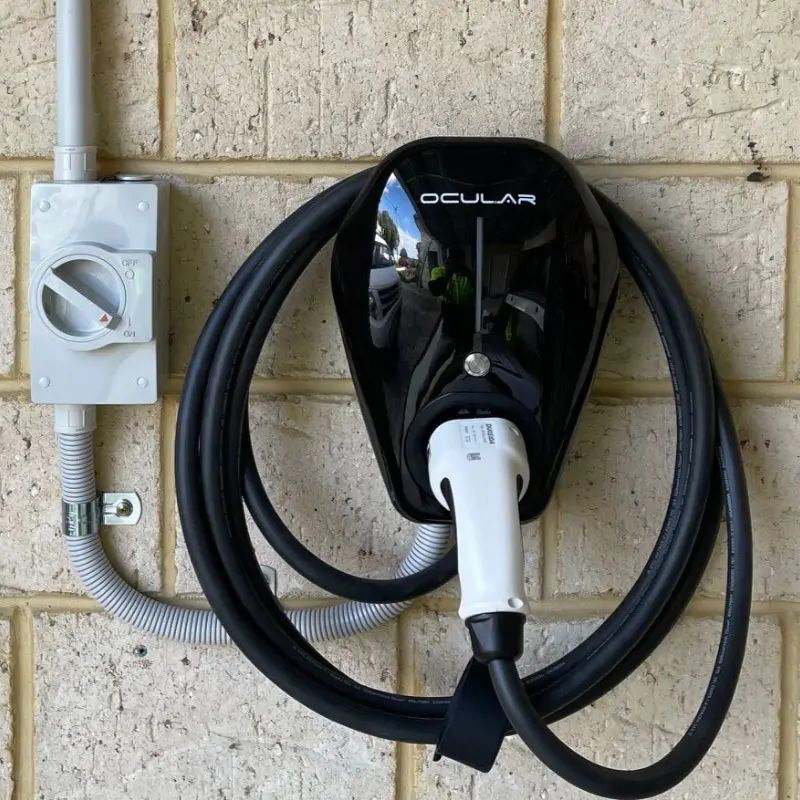

Licensed electrician only. Dedicated circuit with a 40A Type A RCBO. The CT clamp goes on the main incoming active at the switchboard and the signal lead runs back to the charger, so mention the distance when you book the sparky.

Other options

Three phase home? IQ Home Solar 22kW. No solar? The IQ Mini 7kW is the same platform without the CT clamp. See everything in 7kW EV chargers.
