Ocular IQ Home Solar 22kW: The Three Phase EV Charger That Runs on Your Solar
The Ocular IQ Home Solar 22kW is a three phase EV charger that tracks what your solar is making and sends the surplus into your car instead of back to the grid. Three CT clamps come in the box, the app is free, and once your electrician has it set up there's nothing to fiddle with.
Why the Ocular IQ 22kW EV Charger Earns Its Spot
- 22kW three phase: 400V, up to 32A per phase. Ocular quotes around 120km of driving per hour of charge.
- Solar charging built in: three CT clamps included, no extra hardware.
- Automatic load balancing: backs off when the house is drawing hard so your main breaker doesn't trip, then ramps back up.
- Three charging modes: Fast, Solar Assist and Solar Only.

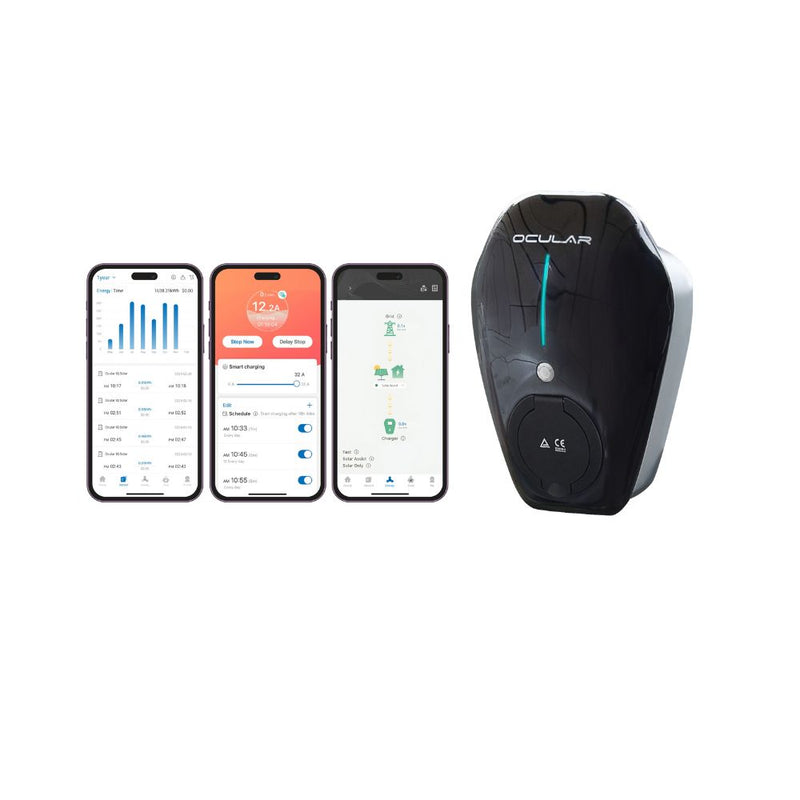

- Wi-Fi, Ethernet and 4G: control and monitor charging from anywhere in the free Ocular app.
- Four ways to start: app, button, RFID card or plug and charge.
- Built for outdoors: IP55 and IK10 rated, -30°C to +50°C.
Your actual charging speed is capped by your car's onboard AC charger, and many EVs can't take the full 22kW. Check your car's AC charging rating before you buy.
Choose cable or socket above and add to cart. Licensed installation required.
How the IQ Three Phase EV Charger Uses Your Solar
The CT clamps sit on your incoming supply and measure what your home is exporting. The charger matches its charging rate to that surplus. More sun, faster charging. Cloud comes over, it slows down.
Fast
Full speed from solar or grid, limited only by any current limit set on a schedule or at installation.
Solar Assist
Charges at a minimum of 6A plus any excess solar, topping up from the grid when solar is low. Ocular's recommended mode for solar homes, and the best pick if you have a home battery that soaks up excess solar first.
Solar Only
Charges only from excess solar. It needs at least 7A of surplus to start, pauses if solar drops below 6A, and restarts after about 2 to 3 minutes back above 7A.
Ocular IQ Home Three Phase Charger with Load Balancing
The same CT clamps tell the charger what your whole house is pulling, checked every second. When the oven, aircon or hot water kicks in, the charger drops its current until the load eases, then ramps back up. That means you can run a 22kW charger without tripping your main breaker.
Cable or Socket: Which Variant

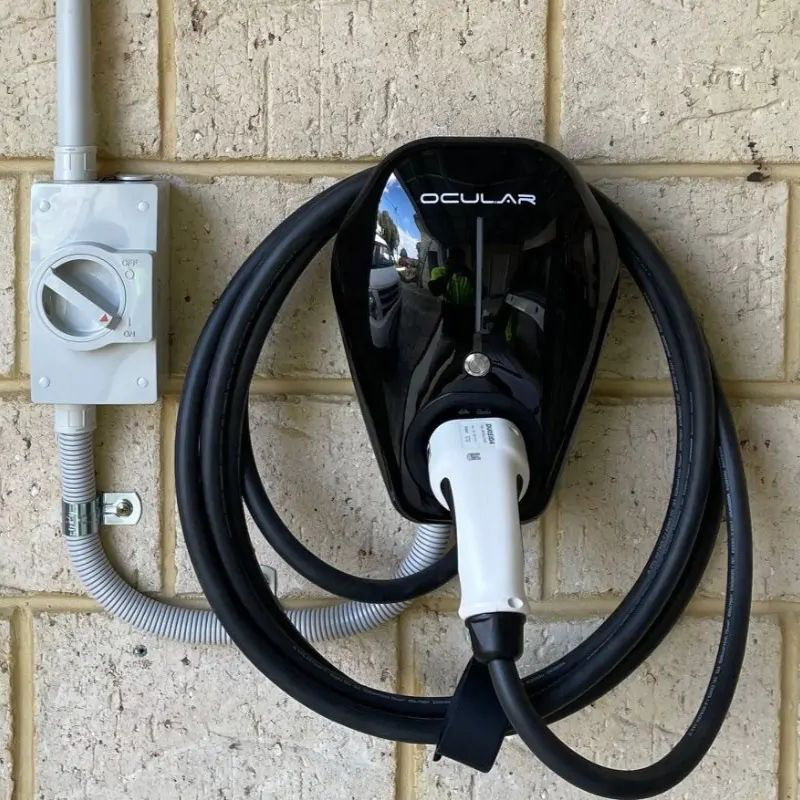

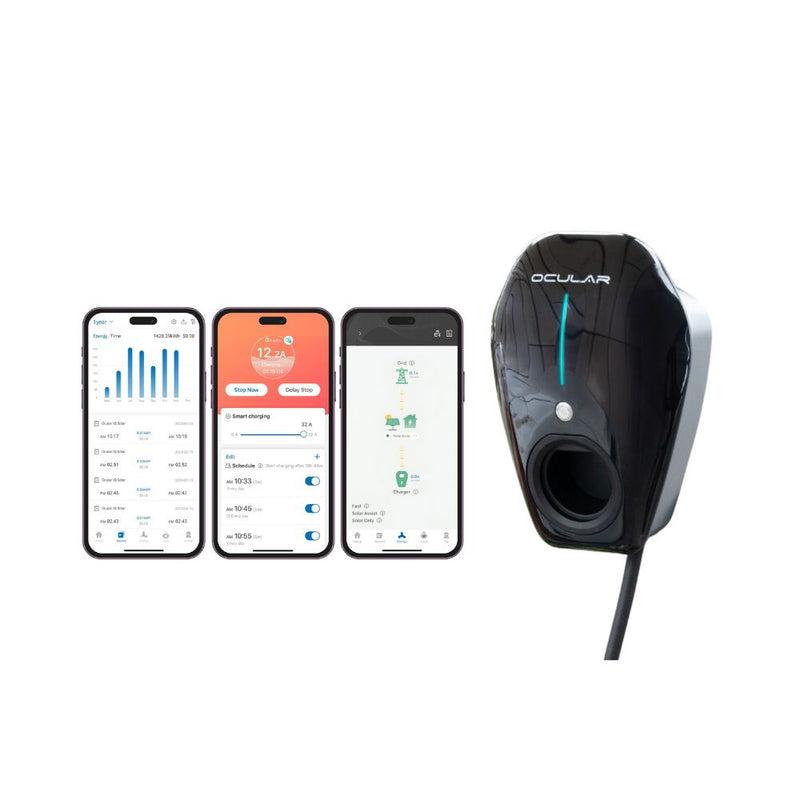

5m Type 2 cable
Cable permanently attached. Park, plug in, walk away. Best for a dedicated garage or carport bay.

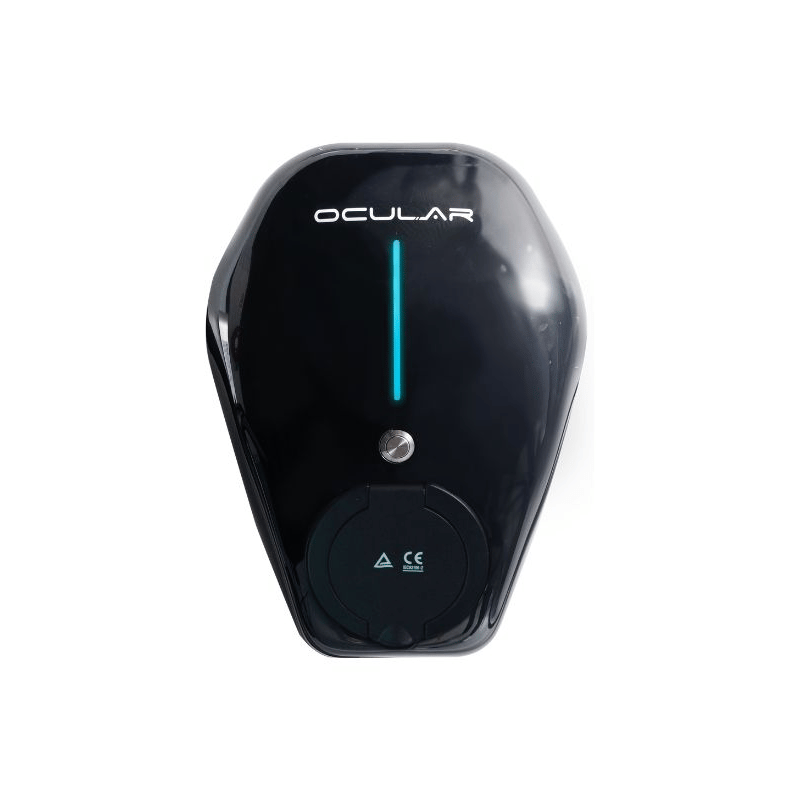

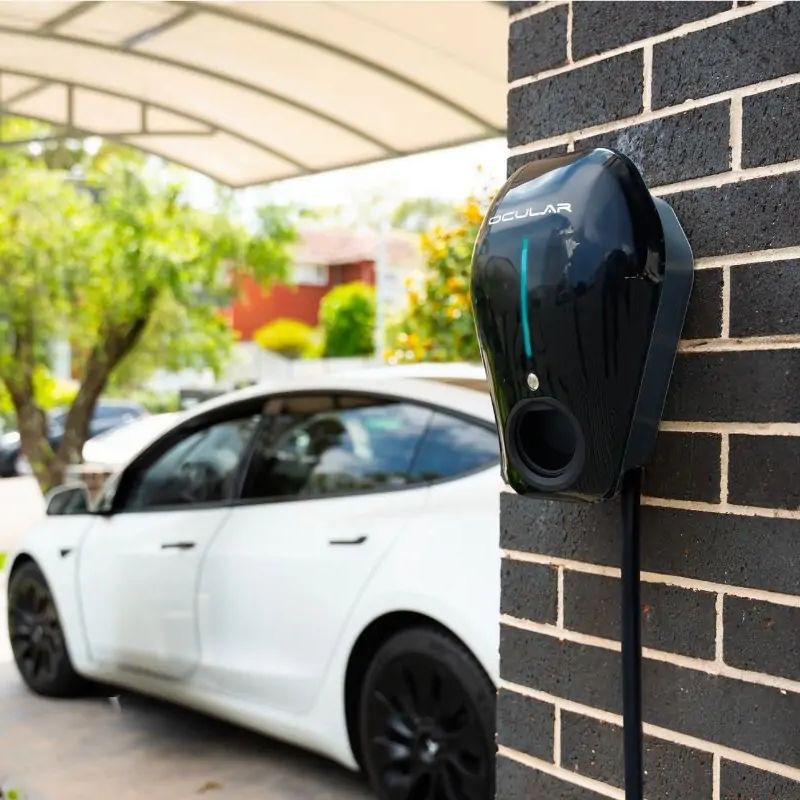

Type 2 socket
No fixed cable. You supply your own Type 2 to Type 2 charging lead in the length that suits. Tidier on the wall and handy for a shared driveway.
What's in the Box
- Ocular IQ Home Solar 22kW charger (with 5m Type 2 cable attached, or Type 2 socket)
- 3 x CT clamps with 20m signal leads
- Mounting template, screws and expansion screws
- Ferrule crimps, entry hole caps and opening tool
No wall near the bay? It fits the Ocular IQ EV Station Stand, sold separately.
Specifications
| Power output | 22kW, three phase |
|---|---|
| Voltage | 400V ±20% |
| Current | 32A max per phase |
| Frequency | 50/60Hz |
| Connector | 5m tethered Type 2 cable, or Type 2 socket |
| CT clamps | 3 included, 100A max, 16mm internal diameter, 20m signal lead |
| Charging modes | Fast, Solar Assist, Solar Only |
| Start methods | App, button, RFID (ISO14443 Type A), plug and charge |
| Connectivity | Ethernet, Wi-Fi, 4G, Modbus TCP/IP |
| OCPP | 1.6J and 2.0.1 (2.0.1 via firmware upgrade) |
| Metering | Integrated energy meter |
| RCD | Internal, 30mA AC and 6mA DC |
| Protection | Overcurrent, short circuit, over and under voltage, earth fault, surge, over-temperature |
| Rating | IP55, IK10 |
| Operating temperature | -30°C to +50°C |
| Dimensions (H x W x D) | 398 x 285 x 226mm |
| Weight | 4.7kg (cable), 1.7kg (socket) |
| Colour | Black face plate |
| Certifications | RCM, CE, IEC/EN 61851-1, IEC/EN 61851-21-2, IEC 62196-2, IEC 61008-1-A1, IEC 62955-1-A1 |
Installation
This charger needs a three phase power supply and must be installed by a licensed electrician to AS/NZS 3000. Ocular recommends a dedicated circuit with a 40A Type A RCBO. The three CT clamps go on the incoming supply at your switchboard and the signal leads run back to the charger, so mention the distance when you book your sparky. Only use the Ocular CT clamps supplied, as other clamps will give wrong readings and void the warranty.
Warranty
2 year manufacturer's warranty. Optional extended warranty adds up to 3 more years, for up to 5 years in total. Warranty depends on installation following Ocular's instructions.
Other Options
Single phase home? The Ocular IQ Home Solar 7kW is the same charger for single phase. No solar? The Ocular IQ Mini 22kW is the same platform without the CT clamps, or the Ocular LTE Plus 22kW is a simpler three phase charger. See the full range in 22kW EV chargers.
