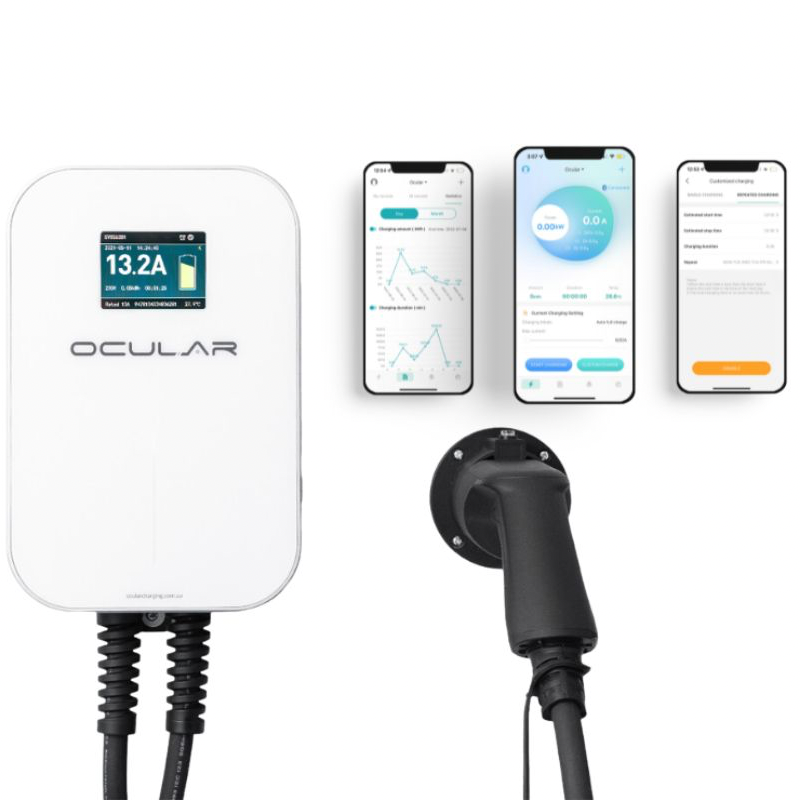

Ocular LTE Plus 22KW Three Phase EV Charger With 6M Type 2 Cable
Extra cover on top of the manufacturer warranty. Your rights under the Australian Consumer Law are not affected.
TALK TO A GARAGE EXPERT
Not sure where to start with your garage setup? We’ve helped countless customers design smarter, more efficient garages and we can do the same for you. Contact us today and let’s map it out.
Ocular LTE Simple Three Phase Charging With Live Feedback On Screen
Why the Ocular LTE Plus 22kW earns its spot
- 22kW three phase output, 32A per phase. Up to 120 km of range an hour on a car that takes it.
- 3.5" LCD screen with live current, power and session data.
- 6m tethered Type 2 cable, the longest in the range.

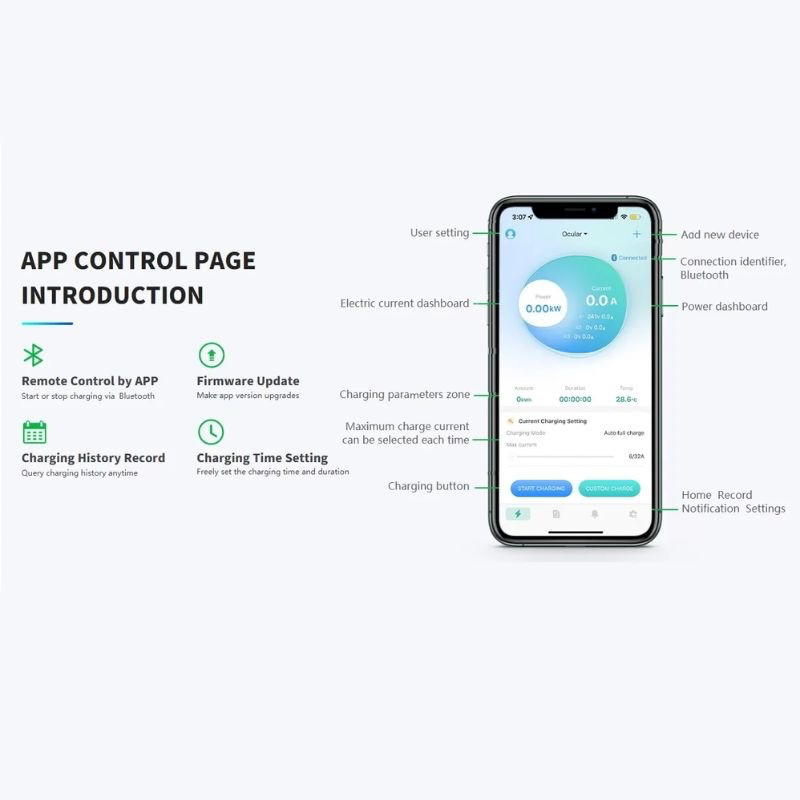

- Bluetooth app for off-peak scheduling and usage history.
- IP55, indoor and outdoor, -30°C to +55°C.
- Three year warranty, RCM certified.

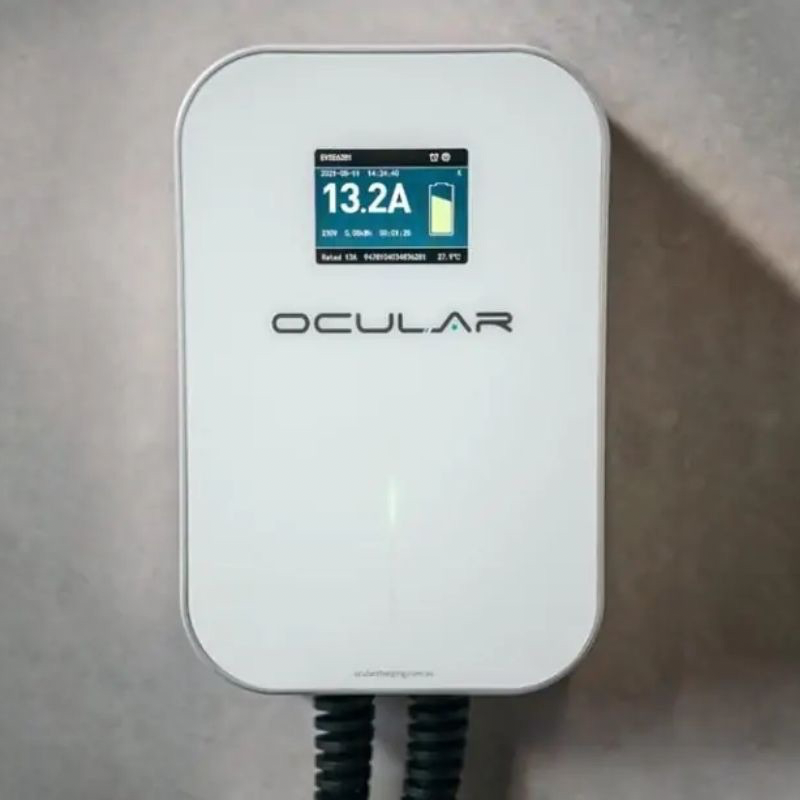

22kW EV charger with an LCD screen
Three phase charging is fast enough that the numbers change while you watch. The screen shows exactly how much your car is drawing, which is handy because most EVs won't take the full 22kW on AC. You'll see the real rate, not the theoretical one.
Check your car's AC charging limit first
The car's onboard charger caps AC charging. Many EVs are limited to 7kW or 11kW. The LTE Plus 22kW still works with them, it just charges at the car's limit. Check your manual so you're buying the speed you'll actually get.
Three phase tethered EV charger: one cable, no lead
The 6m cable is permanently attached and rated for the full 22kW. Park, plug in, done. No separate lead needed, no cable rating to worry about.

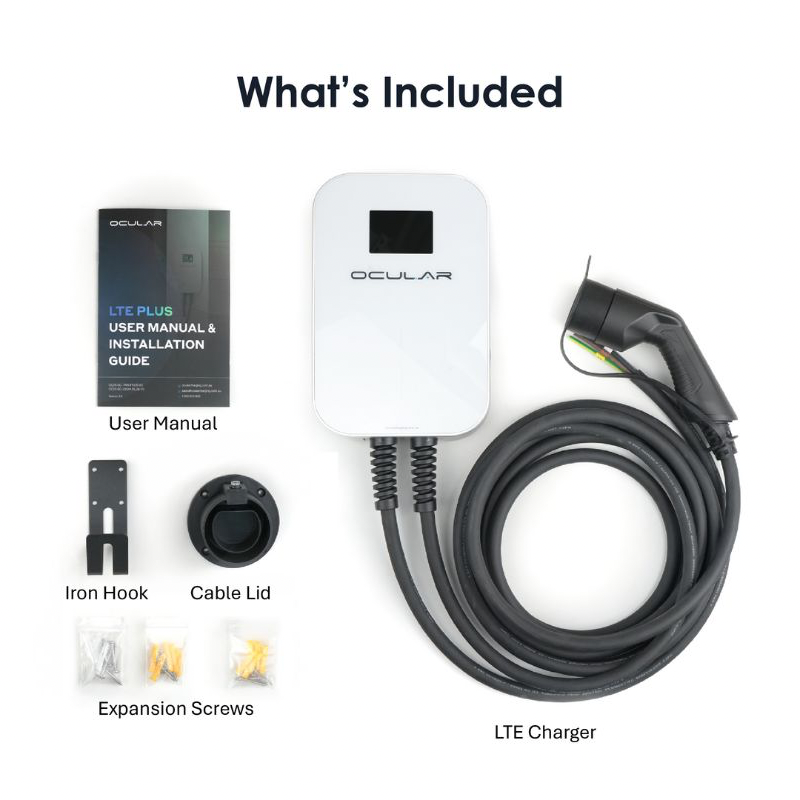

What's in the box
- Ocular LTE Plus 22kW charging station
- 6m tethered Type 2 cable
- Wall mounting bracket and fixings
- Installation guide
Wall mount only. Does not fit the Ocular IQ charger stand.
Specifications
- Power output: 22kW, 3 phase, 230V ± 20% per phase, 32A max per phase
- Connector: 6m tethered Type 2
- Display: 3.5" LCD plus LED indicators
- App: Bluetooth
- OCPP: 1.6J via Ethernet only (extra configuration required)
- RCD: 30mA AC plus 6mA DC
- Energy meter: integrated
- Standby draw: under 15W
- IP rating: IP55
- Size: 318 x 200 x 80 mm (H x W x D)
- Weight: 8.5 kg
- Certification: CE, TUV, FCC, CSA, RoHS, RCM
- Warranty: 3 years

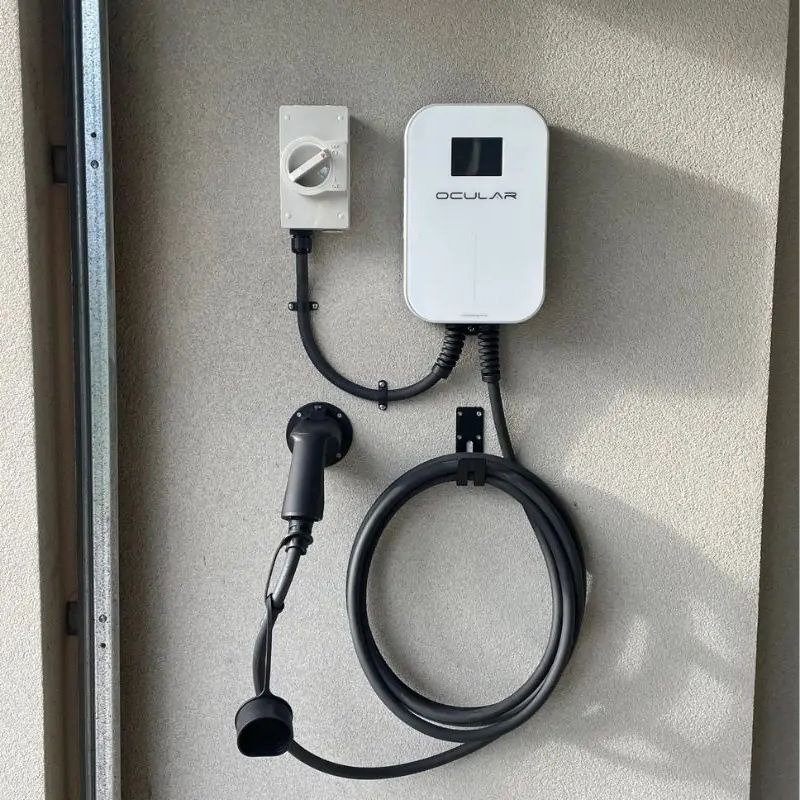

Installation
Licensed electrician only. Dedicated circuit with a 40A three phase Type A RCBO. Ocular recommends 10mm² 4C+E cable for a 50m run.
Other three phase options
Solar? The IQ Home Solar 22kW comes with three CT clamps. Single phase only? The LTE Plus 7kW is the same charger for a single phase home. Full range in 22kW EV chargers.
