Ocular Charging IQ Mini 7kW EV Charger: Compact Single Phase Charging for Homes and Apartments
The Ocular IQ Mini 7kW is a straightforward single phase EV charger in a compact, IP55 rated housing. It connects over Wi-Fi, Ethernet or 4G, starts from the app, a button, an RFID card or plug and charge, and speaks OCPP, so it's as at home in a shared apartment car park as it is in your garage.
Why the IQ Mini 7kW Earns Its Spot
- 7.2kW single phase: 230V, up to 32A.
- Adjustable output: your electrician can set a hard limit of 32, 25, 20, 16 or 10A to suit your switchboard.
- RFID access control: only approved cards can start a session, handy where the charger is shared.
- Wi-Fi, Ethernet and 4G: monitor and control charging in the Ocular app.
- OCPP 1.6J and 2.0.1: works with the charge management platforms used by strata and businesses.
- Integrated energy meter: track how much power each session uses.
- Built for outdoors: IP55 and IK10 rated, -30°C to +50°C.
Choose cable or socket above and add to cart. Licensed installation required.
Is the Ocular IQ Mini Single Phase Right for You?
The IQ Mini is not solar compatible and doesn't come with CT clamps. If you want to charge from your rooftop solar, or want the charger to automatically balance itself against your home's power use, the Ocular IQ Home Solar 7kW is the better fit. Load management on the IQ Mini is available through the Ocular Load Controller or OCPP smart charging profiles.
Cable or Socket: Which Variant

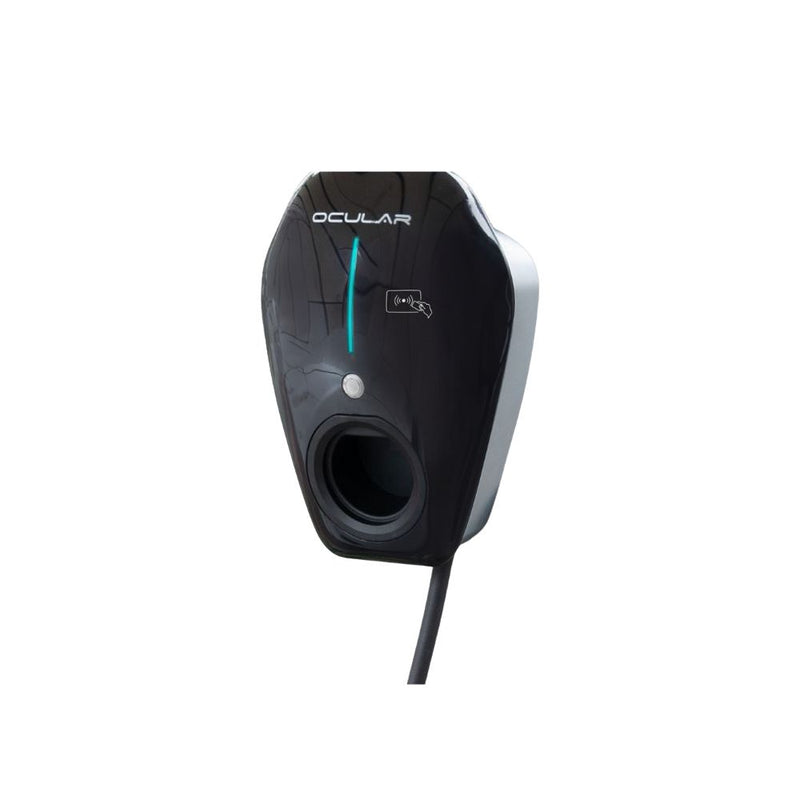

5m Type 2 cable
Cable permanently attached. Park, plug in, walk away. Best for a dedicated garage or carport bay.

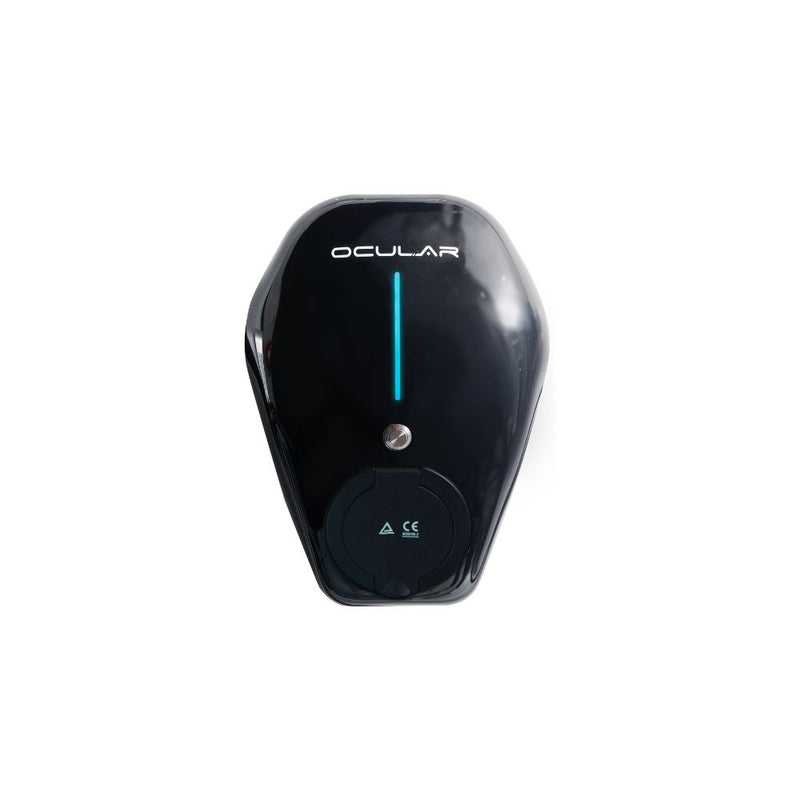

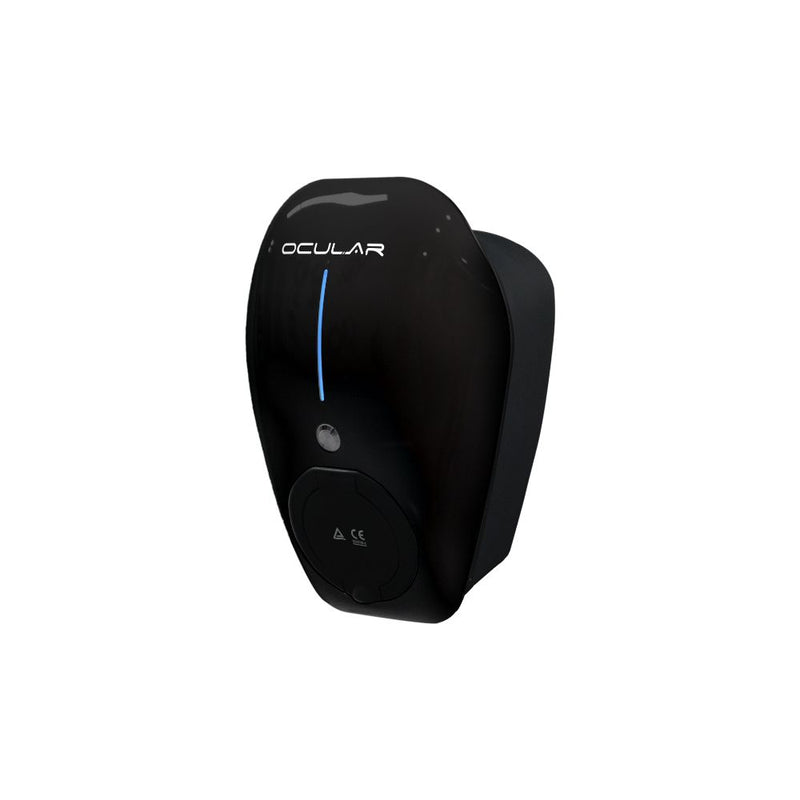

Type 2 socket
No fixed cable. You supply your own Type 2 to Type 2 charging lead in the length that suits. Tidier on the wall and a good pick for shared parking.
What's in the Box
- Ocular IQ Mini 7kW charger (with 5m Type 2 cable attached, or Type 2 socket)
- Mounting template, screws and expansion screws
- Ferrule crimps, entry hole caps and opening tool
No wall near the bay? It fits the Ocular IQ EV Station Stand, sold separately.
Specifications
| Power output | 7.2kW, single phase |
|---|---|
| Voltage | 230V ±20% |
| Current | Up to 32A, adjustable to 25, 20, 16 or 10A |
| Frequency | 50/60Hz |
| Connector | 5m tethered Type 2 cable, or Type 2 socket |
| Start methods | App, button, RFID (ISO14443 Type A), plug and charge |
| Connectivity | Ethernet, Wi-Fi, 4G, Modbus TCP/IP |
| OCPP | 1.6J and 2.0.1 (2.0.1 via firmware upgrade) |
| Metering | Integrated energy meter |
| Load management | Via Ocular Load Controller or OCPP smart profiles |
| Solar charging | Not supported |
| RCD | Internal, 30mA AC and 6mA DC |
| Protection | Overcurrent, short circuit, over and under voltage, earth fault, surge, over-temperature |
| Rating | IP55, IK10 |
| Operating temperature | -30°C to +50°C |
| Dimensions (H x W x D) | 398 x 285 x 226mm |
| Weight | 4.5kg (cable), 1.5kg (socket) |
| Certifications | RCM, CE, IEC/EN 61851-1, IEC/EN 61851-21-2, IEC 62196-2, IEC 61008-1-A1, IEC 62955-1-A1 |
Installation
This charger needs a single phase supply and must be installed by a licensed electrician to AS/NZS 3000. Ocular recommends a dedicated circuit with a 40A Type A RCBO and an isolation switch near the charger. If your electrician sets a lower current limit, they'll let you know.
Warranty
2 year manufacturer's warranty. Optional extended warranty adds up to 3 more years, for up to 5 years in total. Warranty depends on installation following Ocular's instructions.
Other Options
Three phase home? The Ocular IQ Mini 22kW is the same charger for three phase. Got solar? Go the Ocular IQ Home Solar 7kW. See the full range in 7kW EV chargers.
