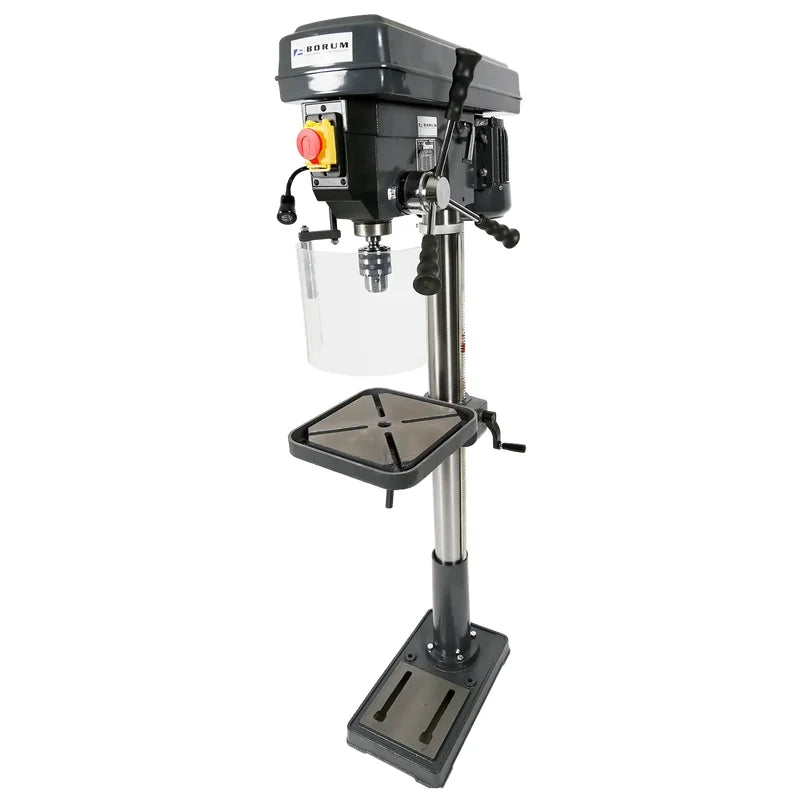

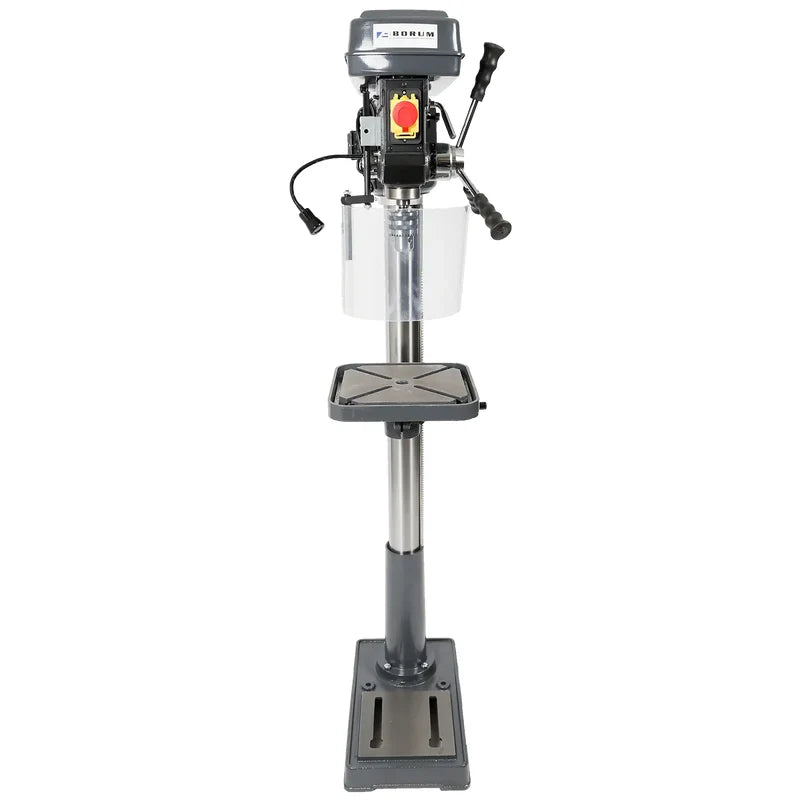

Borum 16 Speed 1HP Pedestal Drill: More Swing, More Capacity
The Borum 1HP pedestal drill steps up to a 20 mm drilling capacity and a 430 mm swing, with 16 spindle speeds up to 3160 rpm. It's a heavy duty, belt driven drill press for maintenance workshops, fabricators and sheds that drill bigger holes in bigger work.
Why the Borum 1HP Earns Its Spot
- 16 speeds. Up to 3160 rpm, so you can match the speed to the bit and the material.
- Enclosed 1 HP motor. A long life commercial motor housed in a metal hood, built for continuous loads.
- 20 mm capacity. A step up from the 3/4HP for bigger holes.
- Precision spindle. Double wide spindle bearings for long life and accuracy.
- Quiet belt drive. Cast iron balanced pulleys for low noise and low maintenance.

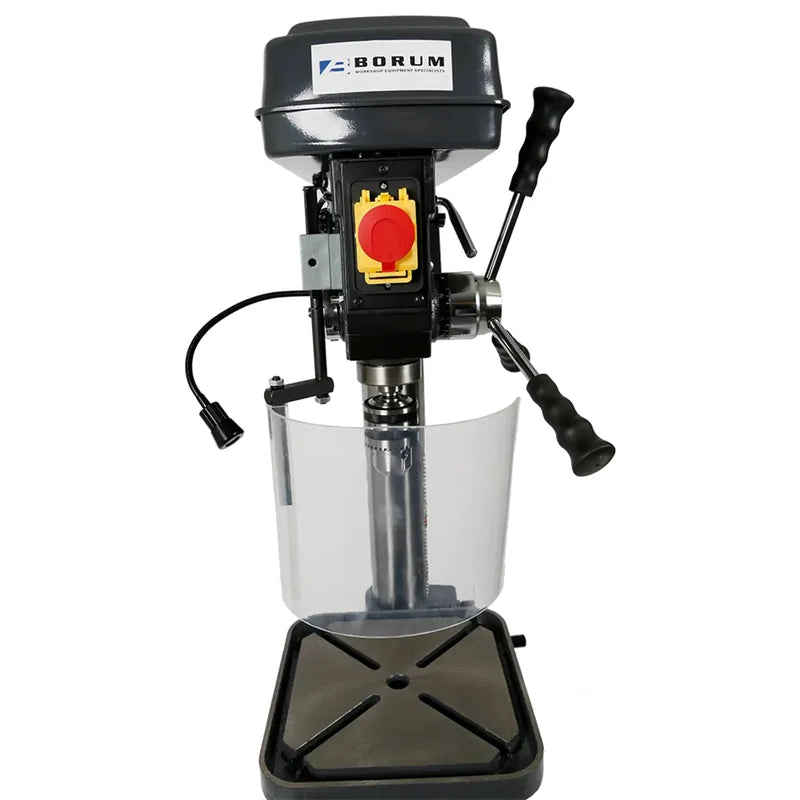

- Safety first. An oversize, micro switch activated chuck guard, plus an ON-OFF switch with a dust cover and a red self locking emergency stop cover.

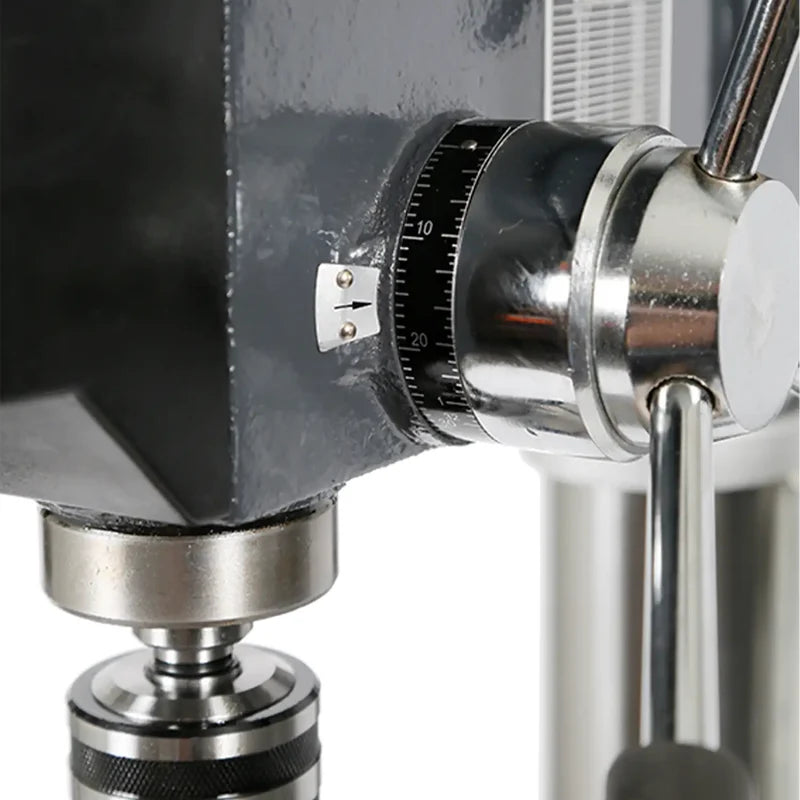

- Depth stop. Long quill stroke with an easy to set depth stop at the capstan handle.

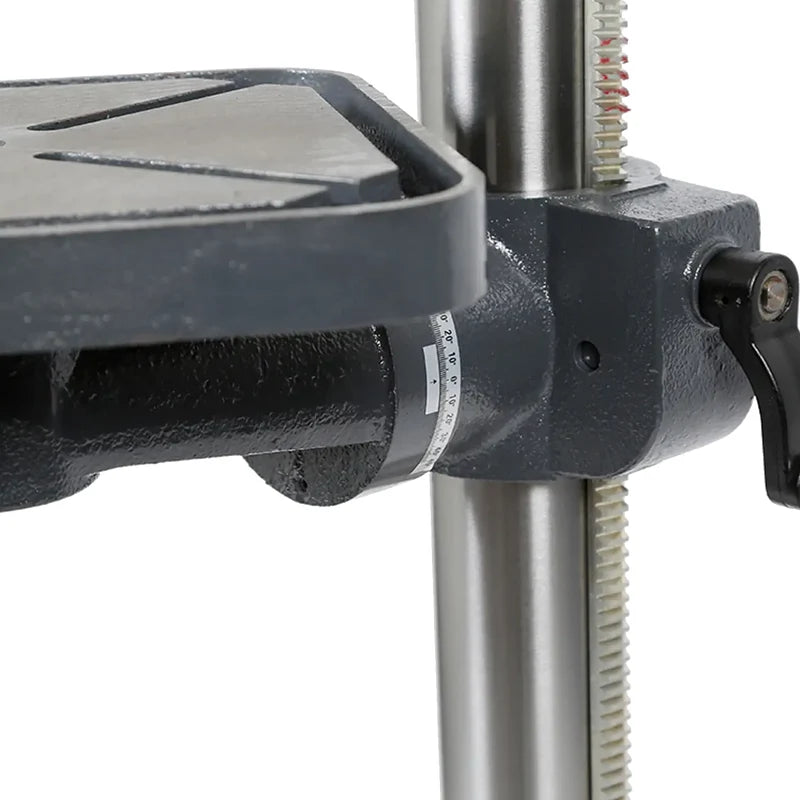

- Solid table. Engineering style rotating table with diagonal clamping slots, raised by hand crank and gear rack.
- Rigid column. Thick walled, precision ground 80 mm column.
- Flexible work light. Light right where you're drilling.
- Parts in Australia. A full range of spare parts is available locally.
Which Borum Drill Is Right for You?
| Model | Motor | Max drilling | Speeds | Spindle taper | Swing | Weight |
|---|---|---|---|---|---|---|
| Borum 16 Speed 3/4HP (CH16NFT) | 3/4 HP | 16 mm | 16, 162 to 3000 rpm | MT2 | 350 mm | 55 kg |
| Borum 16 Speed 1HP (CH18FT) | 1 HP | 20 mm | 16, up to 3160 rpm | MT2 | 430 mm | 85 kg |
| Borum 12 Speed 2HP (CH30T) | 2 HP | 32 mm | 12, 210 to 2160 rpm | MT4 | 535 mm | 148 kg |
Borum CH18FT Specifications
| Specification | Detail |
|---|---|
| Motor | 240 V, 1 HP (0.75 kW) |
| Number of speeds | 16 |
| Maximum spindle speed | 3160 rpm |
| Maximum drilling capacity | 20 mm |
| Spindle taper | MT2 |

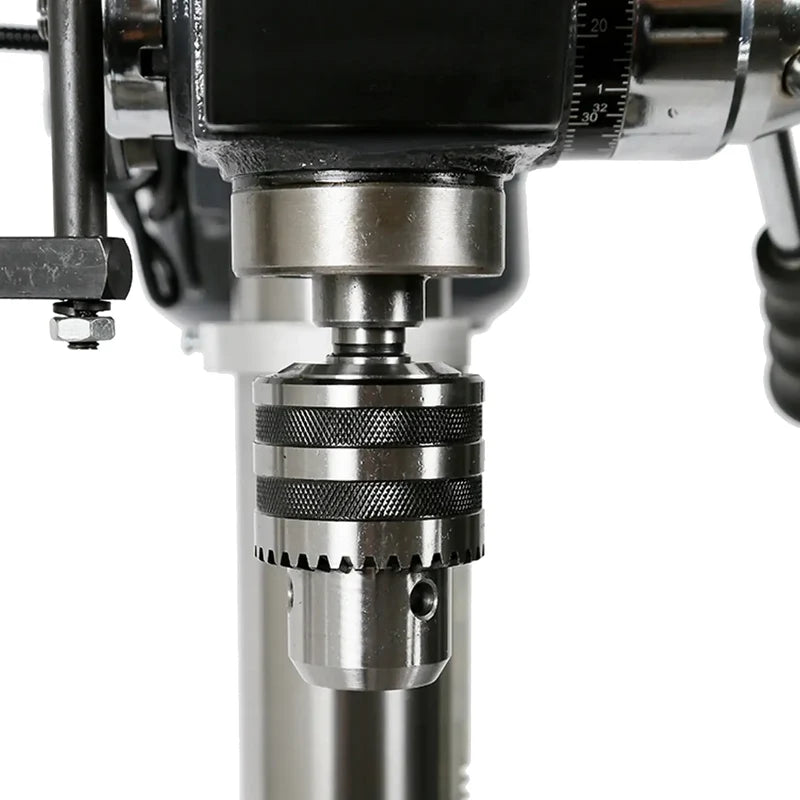

| Chuck | 16 mm |
| Maximum spindle stroke | 82 mm |
| Swing | 430 mm |
| Maximum spindle to table | 775 mm |
| Maximum spindle to base | 1270 mm |
| Column diameter | 80 mm |
| Table diameter | 350 mm |
| Base | 460 × 270 mm |
| Overall height | 1625 mm |
| Weight | 85 kg |
| Carton | 1390 × 530 × 265 mm |
What's Included
- Drill head, column, base and work table with bracket
- 16 mm chuck, arbor and chuck key
- Feed handles
- Chuck guard
- Column and table bolts
Drill bits and a drill press vice aren't included.
Setting Up
The drill arrives in a carton and needs assembly: column to base, table bracket and table, head, feed handles, then the arbor and chuck. At 85 kg, it's a two person lift. Bolt the base to the floor before use so it can't tip or slide, and plug it into a power supply protected by a circuit breaker.
Safe Use
- This drill press is for drill bits only. Other accessories can be dangerous.
- Clamp the work in a vice or to the table. Never hold metal by hand.
- Take the chuck key out before switching on.
- Don't wear gloves while the drill is running.
- Unplug it before any maintenance or adjustment.
Warranty
Borum covers this drill for 12 months from purchase against defects in materials and workmanship (90 days if it's hired out). Normal wear and tear, misuse, modifications and accident damage aren't covered.
