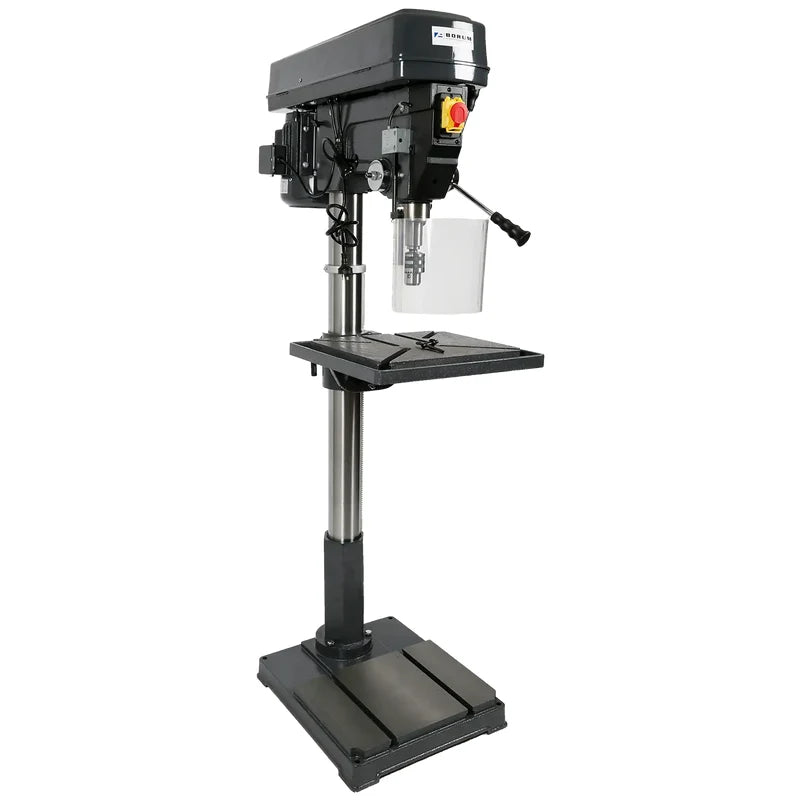

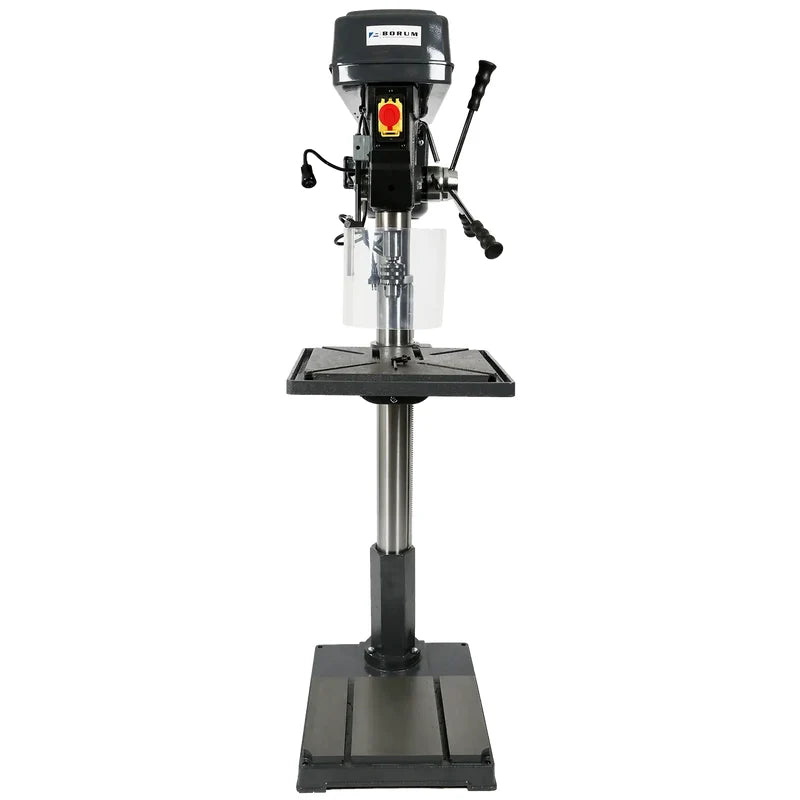

Borum 12 Speed 2HP Pedestal Drill: Heavy Duty Drilling to 32 mm
The Borum 2HP pedestal drill is the big one in the range: a 32 mm drilling capacity, MT4 spindle taper and a 535 mm swing, with 12 spindle speeds from 210 to 2160 rpm. It's built for medium and heavy duty production work in maintenance workshops, fabrication shops and factories.
Why the Borum 2HP Earns Its Spot
- 2 HP motor. A powerful commercial motor housed in a metal hood, built for continuous loads.
- 32 mm capacity, MT4 taper. Takes big bits for big holes.
- 12 speeds. 210 to 2160 rpm, geared low for large diameter drilling.
- 122 mm spindle stroke. Long quill travel with an adjustable depth stop.

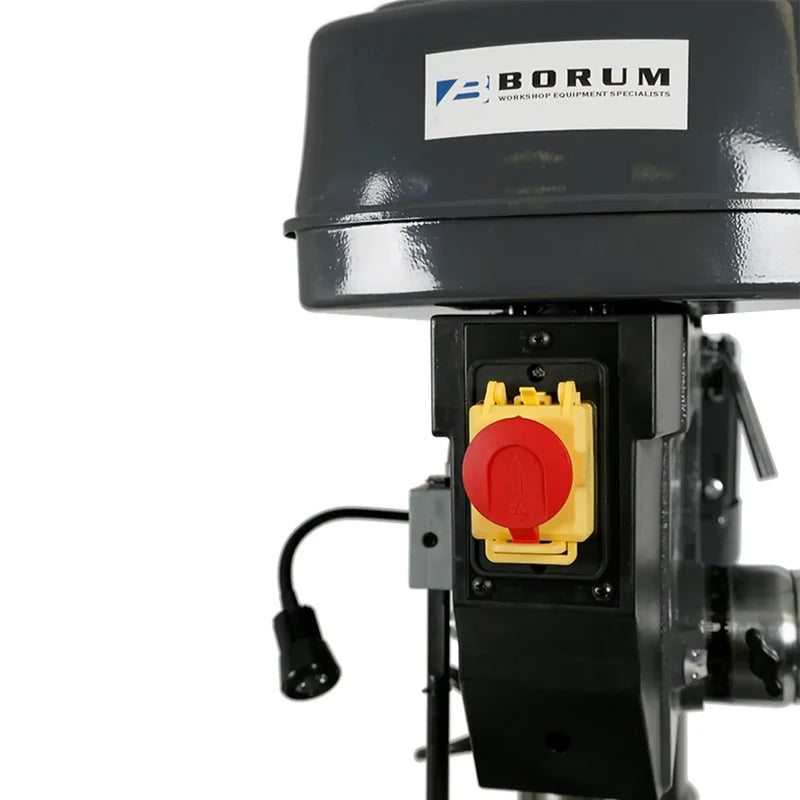

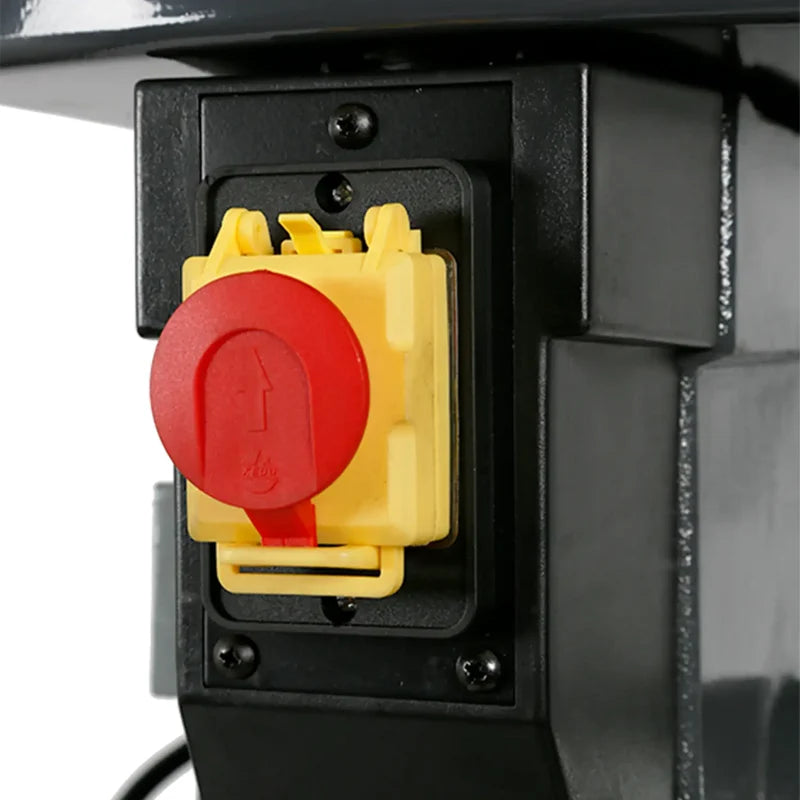

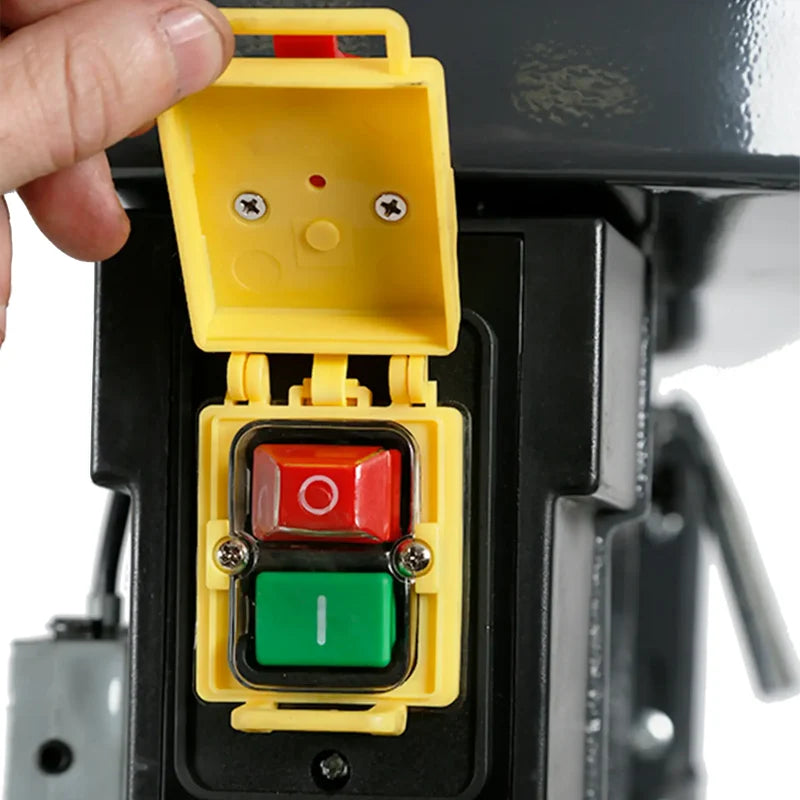

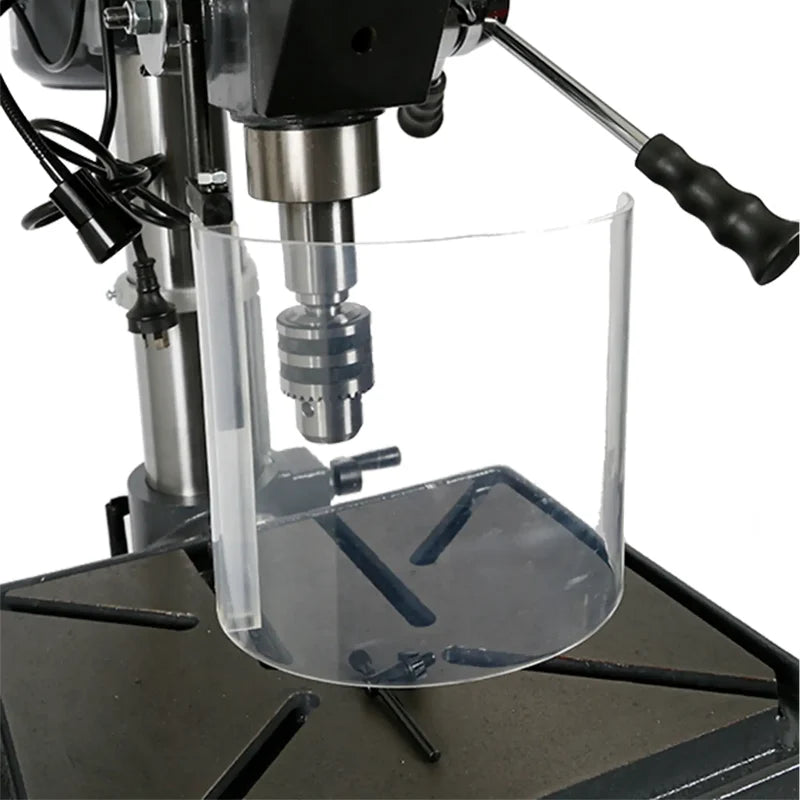

- Safety first. An oversize, micro switch activated chuck guard, plus an ON-OFF switch with a dust cover and emergency stop.
- Precision spindle. Double wide spindle bearings for long life and accuracy.
- Quiet belt drive. Cast iron balanced pulleys for low noise.
- Big table. 473 × 410 mm work table with diagonal clamping slots, raised by hand crank and gear rack.
- Rigid column. Thick walled, precision ground 92 mm column.

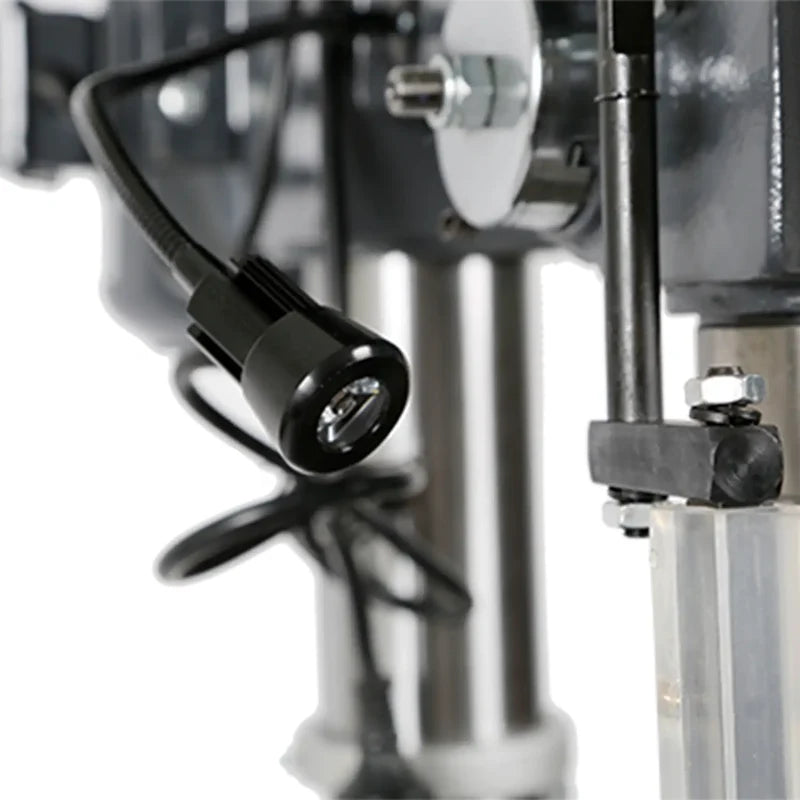

- Flexible work light. Light right where you're drilling.
- Parts in Australia. A full range of spare parts is available locally.
Which Borum Drill Is Right for You?
| Model | Motor | Max drilling | Speeds | Spindle taper | Swing | Weight |
|---|---|---|---|---|---|---|
| Borum 16 Speed 3/4HP (CH16NFT) | 3/4 HP | 16 mm | 16, 162 to 3000 rpm | MT2 | 350 mm | 55 kg |
| Borum 16 Speed 1HP (CH18FT) | 1 HP | 20 mm | 16, up to 3160 rpm | MT2 | 430 mm | 85 kg |
| Borum 12 Speed 2HP (CH30T) | 2 HP | 32 mm | 12, 210 to 2160 rpm | MT4 | 535 mm | 148 kg |
Borum CH30T Specifications
| Specification | Detail |
|---|---|
| Motor | 240 V, 2 HP (1.49 kW) |
| Number of speeds | 12 |
| Spindle speeds | 210 to 2160 rpm |
| Maximum drilling capacity | 32 mm |
| Spindle taper | MT4 |
| Chuck | 16 mm |
| Chuck guard | 190 L × 200 H × 110 D mm |
| Maximum spindle stroke | 122 mm |
| Swing | 535 mm |
| Maximum spindle to table | 720 mm |
| Maximum spindle to base | 1230 mm |
| Column diameter | 92 mm |
| Table | 473 × 410 mm |
| Base | 572 × 495 mm |
| Overall height | 1780 mm |
| Weight | 148 kg |
| Carton | 1460 × 600 × 530 mm |
What's Included
- Drill head, column, base and work table with bracket
- 16 mm chuck, arbor and chuck key
- Feed handles
- Chuck guard
- Column and table bolts
Drill bits and a drill press vice aren't included.
Setting Up
The drill arrives in a carton and needs assembly: column to base, table bracket and table, head, feed handles, then the arbor and chuck. At 148 kg, you'll want lifting gear or a few extra hands to move it. Bolt the base to the floor before use so it can't tip or slide, and plug it into a power supply protected by a circuit breaker.
Safe Use
- This drill press is for drill bits only. Other accessories can be dangerous.
- Clamp the work in a vice or to the table. Never hold metal by hand.
- Take the chuck key out before switching on.
- Don't wear gloves while the drill is running.
- Unplug it before any maintenance or adjustment.
Warranty
Borum covers this drill for 12 months from purchase against defects in materials and workmanship (90 days if it's hired out). Normal wear and tear, misuse, modifications and accident damage aren't covered.
