Verdex Fully-Auto Stretch Wrapping Machine
TALK TO A GARAGE EXPERT
Not sure where to start with your garage setup? We’ve helped countless customers design smarter, more efficient garages and we can do the same for you. Contact us today and let’s map it out.

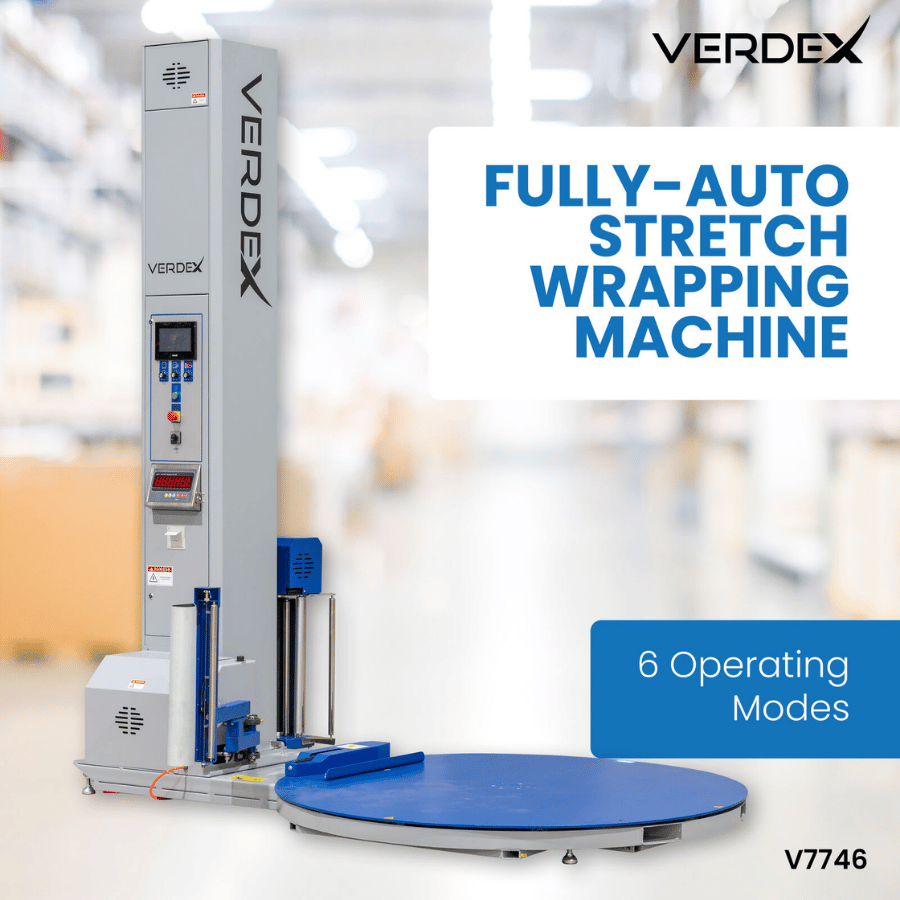

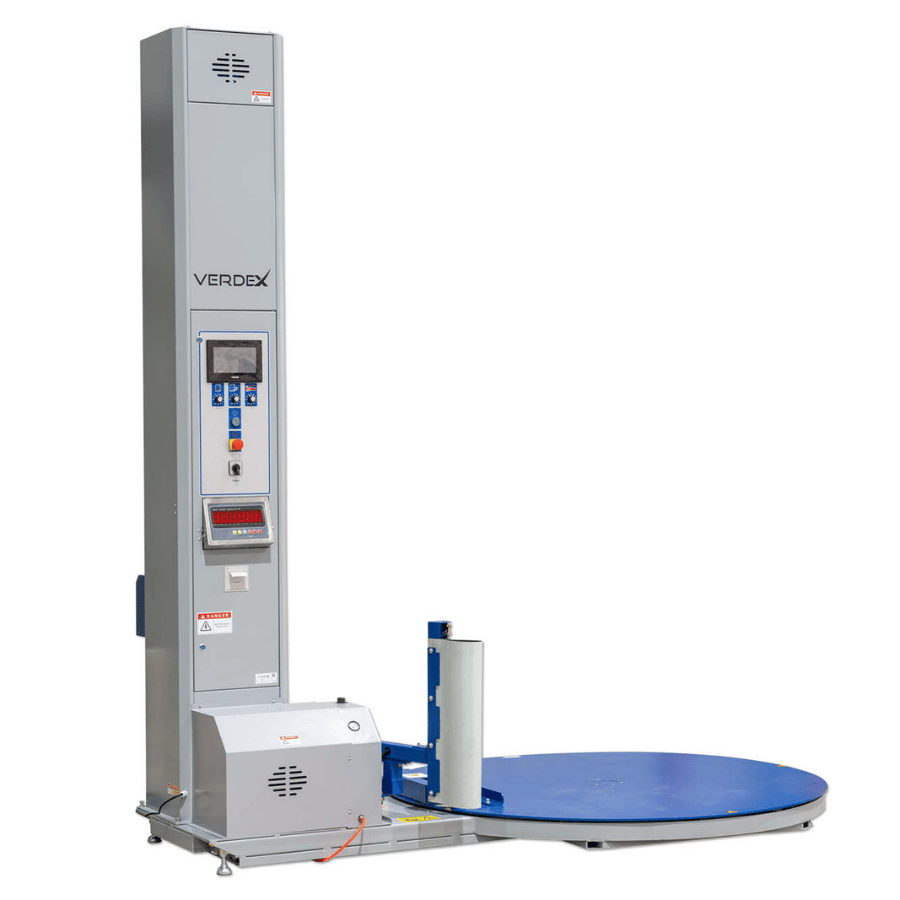

Get Fast, Consistent Pallet Wrapping with Minimal Manual Handling with the Verdex V7746
The Verdex V7746 Fully-Automatic stretch wrapping machine is built for busy warehouses and production sites that need fast, consistent pallet wrapping with minimal manual handling. With automatic film attach and cut, integrated weighing and multiple auto modes, the Verdex Fully-Automatic stretch wrapping machine helps you speed up dispatch while improving load consistency and safety.
How Does the Verdex Fully-Automatic Stretch Wrapping Machine Improve Your Workflow?

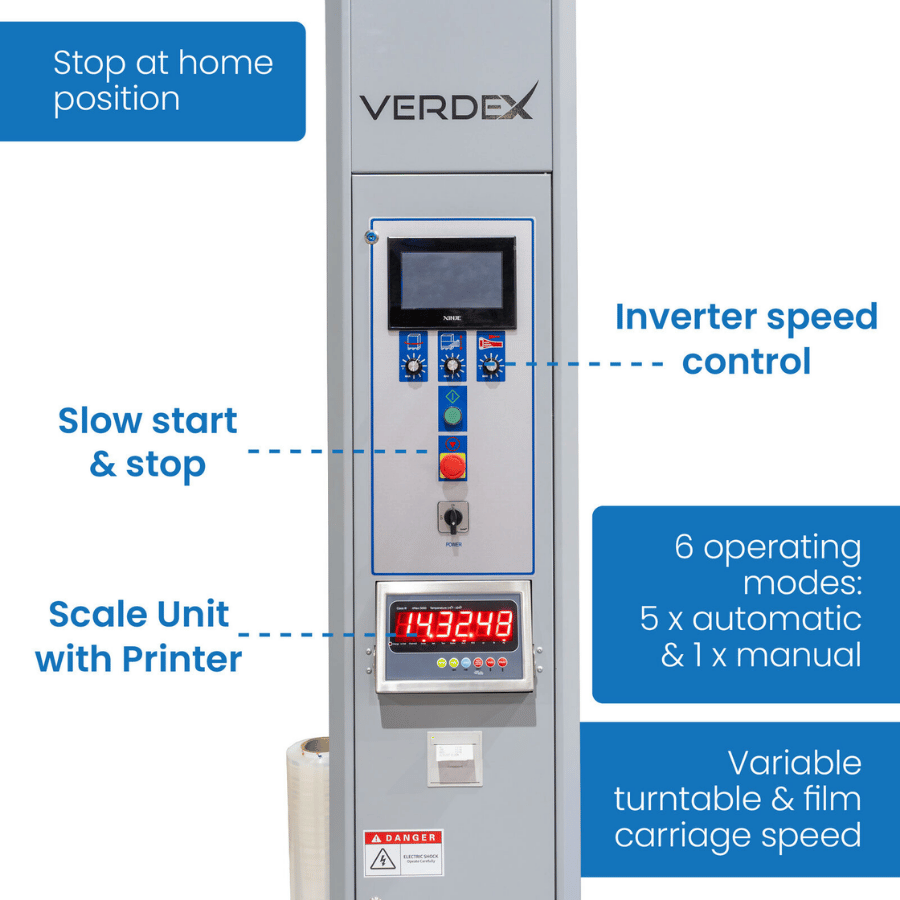

The V7746 Stretch Wrap machine automatically attaches and cuts the film, so operators do not need to walk around the pallet or handle the film by hand. A PLC with keyboard interface controls 6 operating modes (5 automatic and 1 manual), letting you save and recall up to 5 wrap programs for different products or customers, which keeps wraps consistent across shifts.
Why Choose the Verdex V7746 for High-Volume Pallet Wrapping?

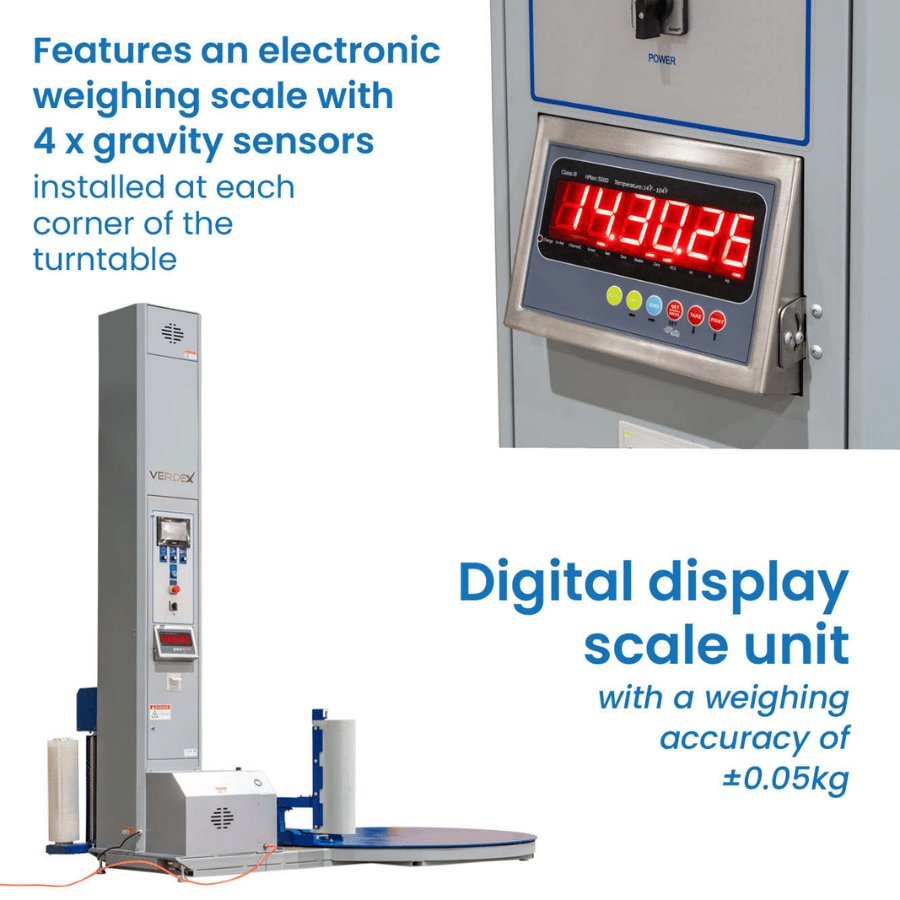

An inbuilt electronic weighing scale uses 4 gravity sensors under the turntable to weigh loads from 50 to 1500 kg with high accuracy, displaying the weight on a digital screen and printing it via the integrated scale printer for records or labels. The V7746 Stretch Wrap machine also comes with a ramp as standard plus front and rear forklift access, making it easy to load and unload pallets without slowing your forklift traffic.
How Does the V7746 Stretch Wrap Machine Protect Loads and Equipment?
Inverter-controlled slow start and stop reduce mechanical shock, extend component life and help prevent load shifting at the start and end of each cycle. The machine auto-detects pallet height and uses variable turntable and film carriage speeds so you can fine tune tension and coverage for different products, with configurable wrap settings at the top, middle and bottom of the pallet.
V7746 Key Specs at a Glance

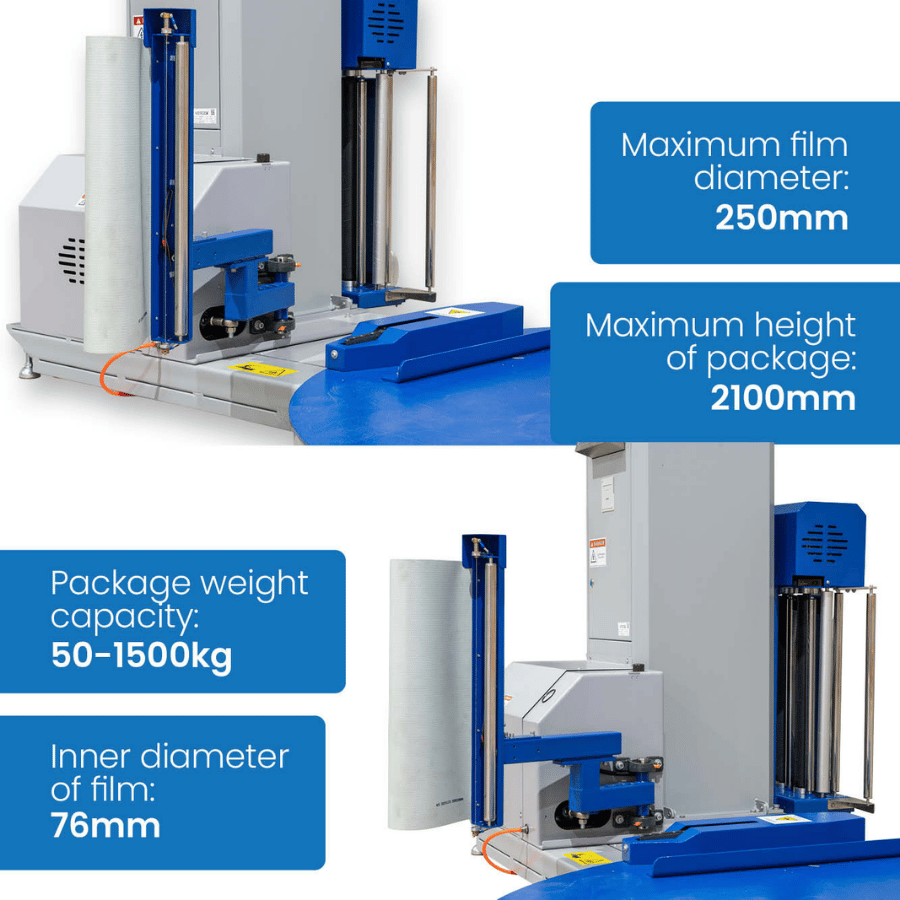

• Load capacity: 50–1500 kg, max pallet height 2100 mm
• Turntable: 1500 mm diameter, 0–10 RPM, supplied with ramp
• Power: 220 V, 50 Hz, approx. 1.2 kW total, requires 0.6 MPa compressed air
• Film: max 250 mm diameter, 76 mm core, pre-stretch film carriage
• Unit weight: approximately 550 kg
Due to the size and weight of the Verdex V7746 Fully-Automatic stretch wrapping machine, additional freight charges will apply; please contact us for a shipping quote before ordering.
V7746 Specifications
- Automatically attach & cut film
- PLC control+key board control
- Features an electronic weighing scale with 4 x gravity sensors installed at each corner of the turntable
- Digital display scale unit with a weighing accuracy of ±0.05kg
- Scale unit printer
- 6 operating modes: 5 x automatic modes & 1 x manual mode
- Supplied with a ramp as standard
- Inverter speed control
- Slow start & stop
- Stop at home position
- Auto detect pallet height
- Front & rear forklift access
- Variable turntable & film carriage speed
- Configurable shrink wrap setting for top, middle & bottom of pallet - 5 memory settings available
- Accepts a 3 inch/76mm machine wrap core
- Package weight capacity: 50-1500kg
- Power: 220V, 50HZ, 1.2kw (Pre-stretch film carriage)
- Lift motor: 0.25kW
- Pre-stretch motor: 0.25kW
- Turntable motor: 0.75kW, Speed 0-10 RPM
- Requires compressed air, air pressure: 0.6MPa
- Turntable Diameter: 1500mm
- Max height of package: 2100mm
- Maximum film diameter: 250mm
- Inner diameter of film: 76mm
- Unit Weight: 550kg
