TradeQuip 2103T 680kg Motorcycle Lift: Get the Bike Off the Floor

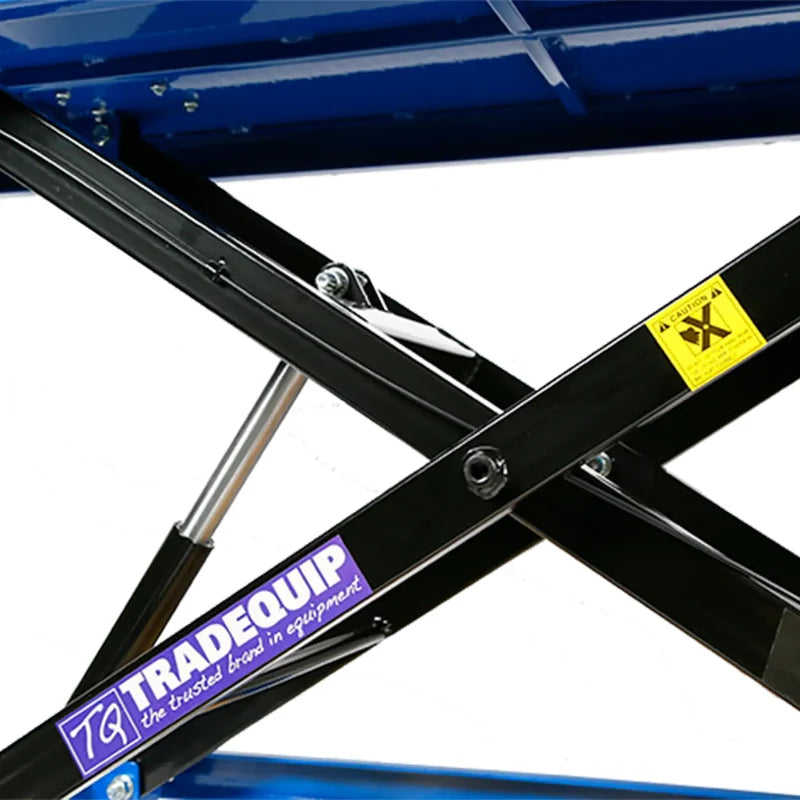

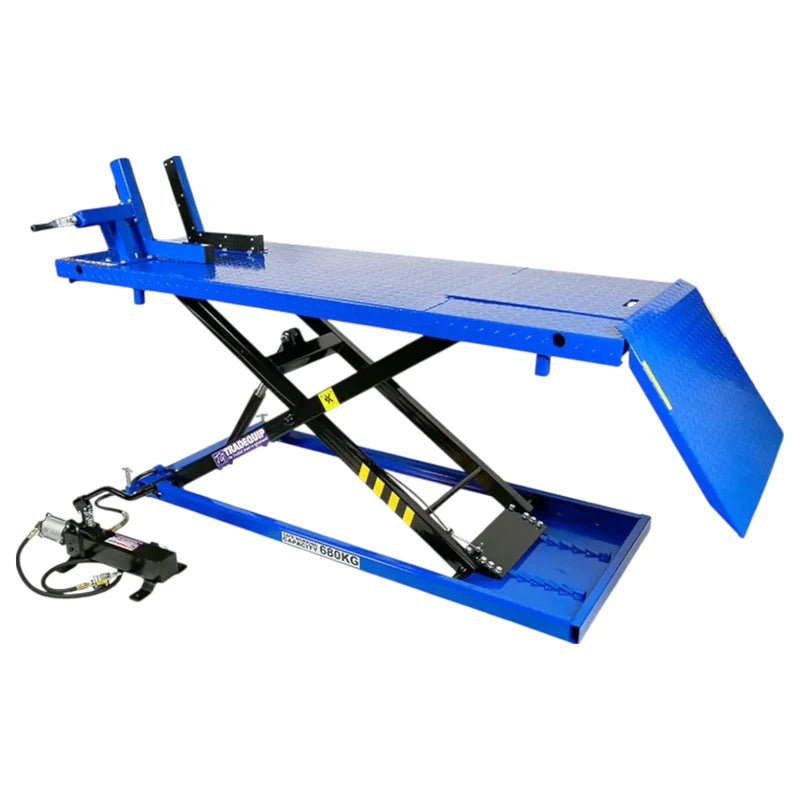

Stop servicing your bike on your knees. The TradeQuip 2103T is an air over hydraulic motorcycle lift with a 680 kg safe working capacity, taking the platform from 185 mm up to an 825 mm working height. Hook it to your compressor and it lifts on air. No air line handy? The hydraulic foot pump does the job instead.
It's built for heavy touring bikes and trikes, and it handles ATVs, ride-on mowers, jet skis, snowmobiles and small tractors too.
Why the TradeQuip 2103T Earns Its Spot
- Air or foot pump lifting. Raise on compressed air, or pump the foot pedal when there's no air.
- 680 kg capacity. Plenty of headroom for heavy tourers, trikes and ATVs.
- Two foot pedals. One lifts, one lowers, so your hands stay free. Lowering is smooth and stepless, whatever the load.

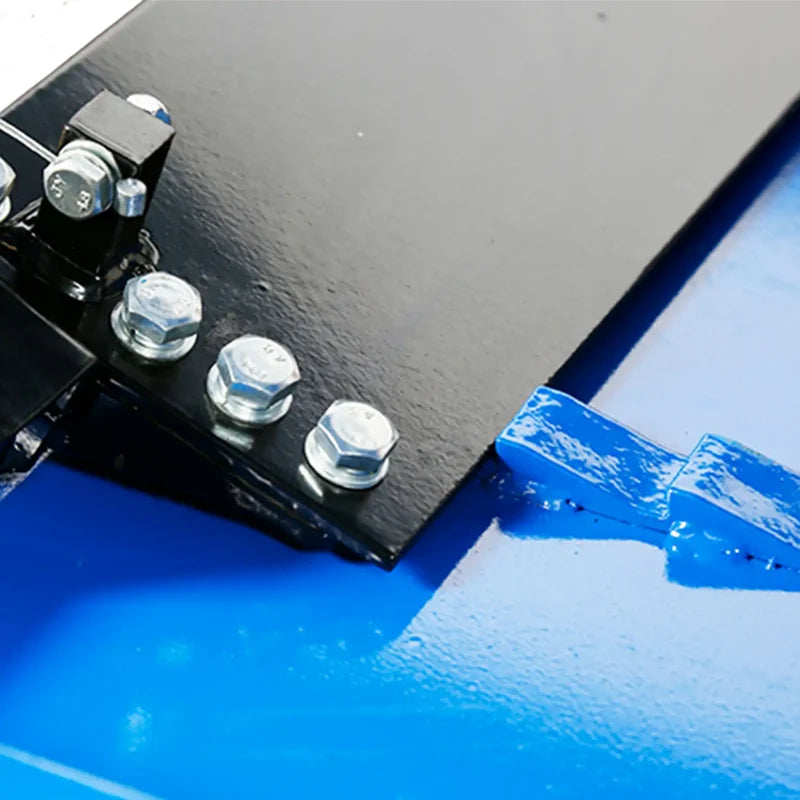

- Locking bar. A two position platform lock stops accidental lowering once you're at working height.

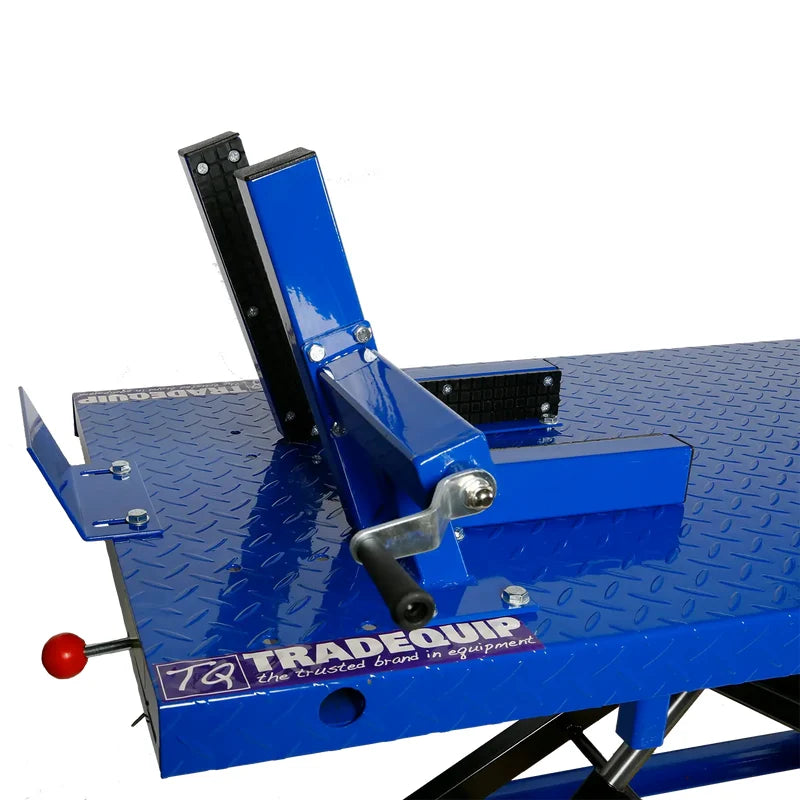

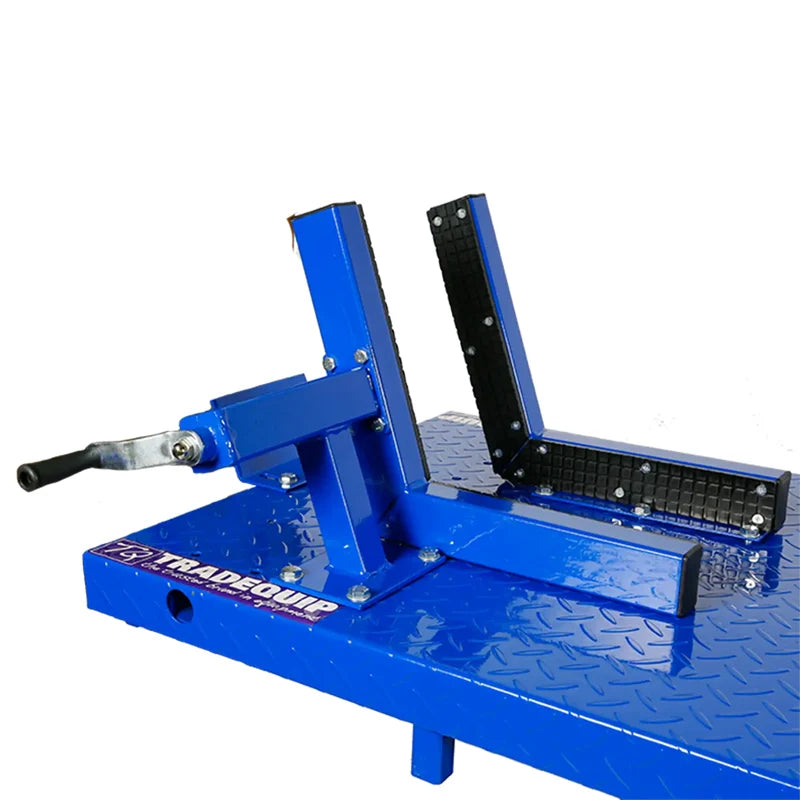

- Front wheel clamp. Adjustable, oversize and rubber lined to hold the front wheel steady.
- Full width loading ramp. Extra long and removable, and it suits bikes on kickstands.
- Two hook mounts. Somewhere solid to strap the load down.
- Oil trap plate. Catches drips for easy drainage.
- Heavy duty steel. Powder coated structural steel, with lockdown bolts to stop the lift moving while you work.
Will It Fit Your Bike?
The platform is 710 mm wide and 2000 mm long. It's best suited to touring bikes and trikes from 2600 to 2800 mm overall length, which will overhang the ends. That's normal for longer machines. Shorter road bikes sit on it easily.

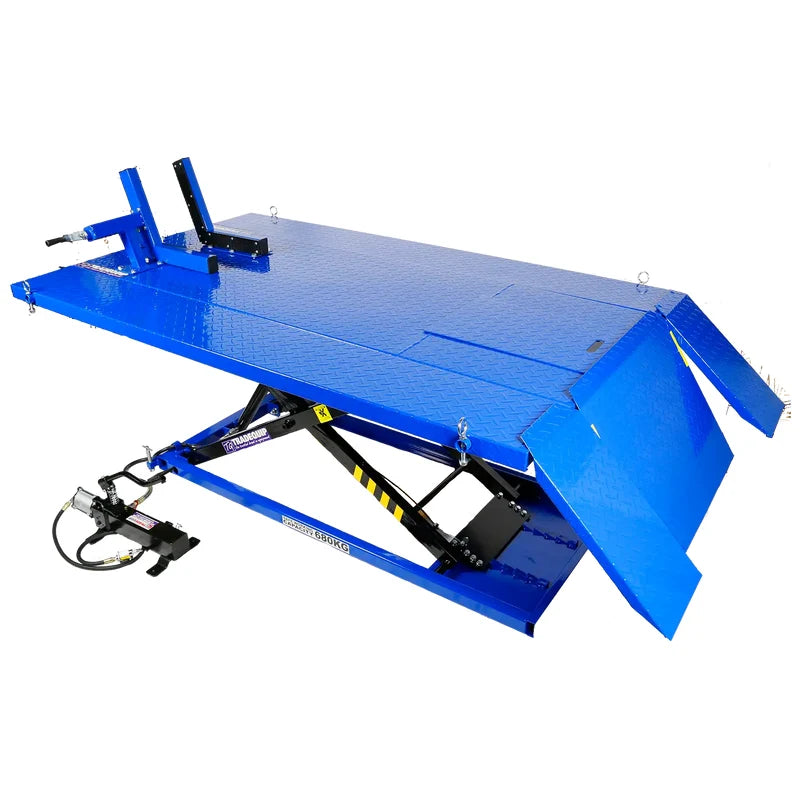

Working on quads or other three and four wheelers? Add the TradeQuip 2103T-EXT extension kit to take the working width out to 1218 mm.
Running a cruiser and don't need air lifting? The TradeQuip 2101T is a foot pump lift with a 450 kg capacity and a longer 2200 mm platform.
TradeQuip 2103T Specifications
| Specification | |
|---|---|
| Safe working capacity | 680 kg |
| Minimum height | 185 mm |
| Maximum height | 825 mm |
| Platform | 710 × 2000 mm |
| Lifting | Air over hydraulic, with hydraulic foot pump backup |
| Air pressure required | 0.75 to 0.85 MPa (7.5 to 8.5 bar) |
| Net weight | 169 kg |
| Shipping crate | 2050 × 845 × 273 mm, 210 kg |
What's Included
- Lift platform and frame assembly
- Air/hydraulic foot pump assembly
- Removable loading ramp
- Front wheel clamp
- Bolts, washers, nuts and cotter pins
Tie down straps are not included. The 2103T-EXT extension kit is sold separately.
Setting Up
Some assembly is needed: the pump connects to the lift by hose, and the loading ramp attaches to the end of the platform. Before first use, the pump sits for an hour so the oil settles, then the system is bled following the owner's manual.
Use the lift on a hard, level surface that can take the load, ideally concrete. For air operation you'll need a compressor that can supply 0.75 to 0.85 MPa.
Safe Use
- Never exceed the 680 kg safe working capacity.
- The loading ramp is only for wheeling the vehicle on at the lowest height. Don't leave the rear wheel on it or lift with weight on it.
- Strap the vehicle to the platform before lifting.
- Engage the locking bar once you reach working height.
- Keep it in one spot. Don't move the lift with a load on it.
- Top up with hydraulic jack oil only, never brake fluid.
Warranty
TradeQuip covers the 2103T for 12 months from purchase against defects in materials and workmanship (90 days if the lift is hired out). Normal wear and tear, misuse, modifications and accident damage aren't covered.
