StoreWALL Heavy-Duty Universal Hook
TALK TO A GARAGE EXPERT
Not sure where to start with your garage setup? We’ve helped countless customers design smarter, more efficient garages and we can do the same for you. Contact us today and let’s map it out.

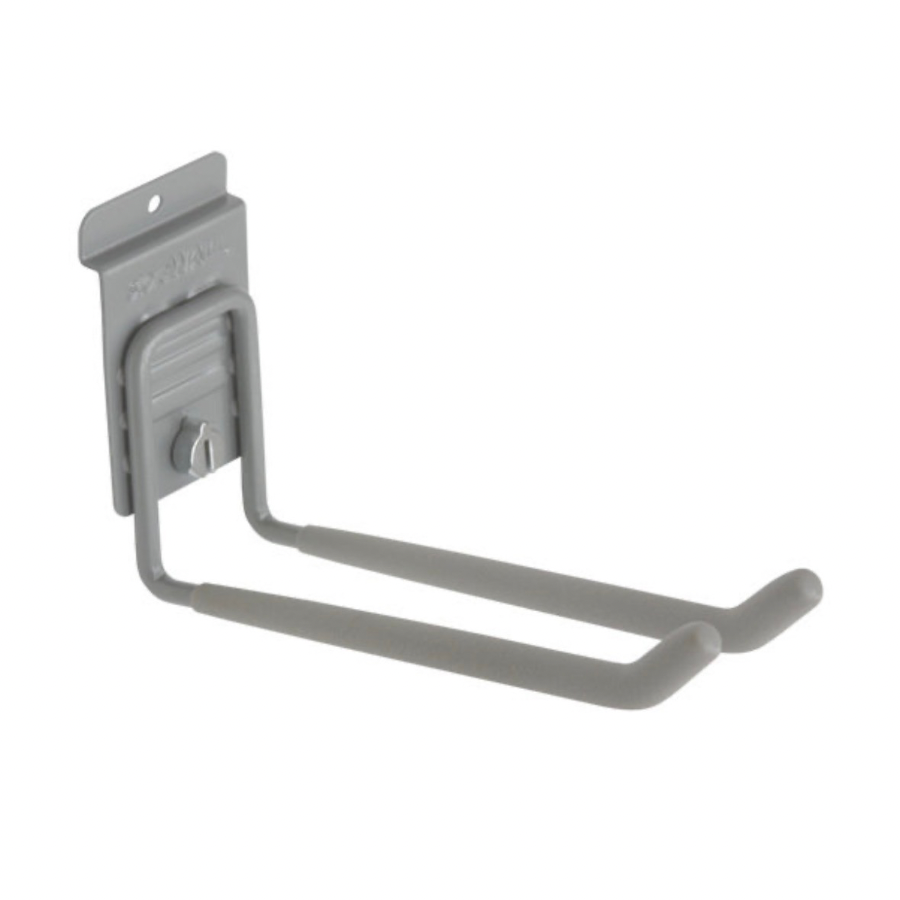

STOREWALL HEAVY DUTY UNIVERSAL HOOK
The Heavy Duty Universal Hook is a larger, stronger version of the standard Universal Hook — 228mm deep vs 114mm, and 68kg capacity vs 45kg. The extra depth and strength make it the right choice for longer or heavier items that the standard hook would hold, but not as comfortably: extension ladders (order 2), large garden tools, long-handled implements, and heavy sports equipment.
For extension ladders, two HD Universal Hooks spaced appropriately along the ladder length give you a secure, stable wall mount without taking up any floor space. CamLok™ pre-installed. Sold as a single hook.
SPECIFICATIONS
← Swipe for full table →
| Specification | Detail |
|---|---|
| SKU | HK-HDUNIV |
| Dimensions | 228mm D × 63mm W × 114mm H |
| Space between prongs | 38mm |
| Weight capacity | 68kg — panels installed with InstallStrips |
| Mounting | CamLok™ pre-installed — locks directly into StoreWALL slatwall grooves |
| Panel compatibility | Standard Duty, Heavy Duty StoreWALL panels, and MKE Slatwall panels |
| Repositionable | Yes — quarter-turn CamLok releases and relocks tool-free |
| Sold as | Single hook |
EXTENSION LADDER STORAGE
Two HD Universal Hooks spaced along the length of a standard extension ladder give you a secure, permanent wall mount. Position the hooks at roughly one-quarter and three-quarters of the ladder's extended length — this distributes weight evenly and prevents the ladder from bowing or shifting. The 228mm depth gives enough reach for the ladder to hang flat against the wall with clear access to the rungs.
