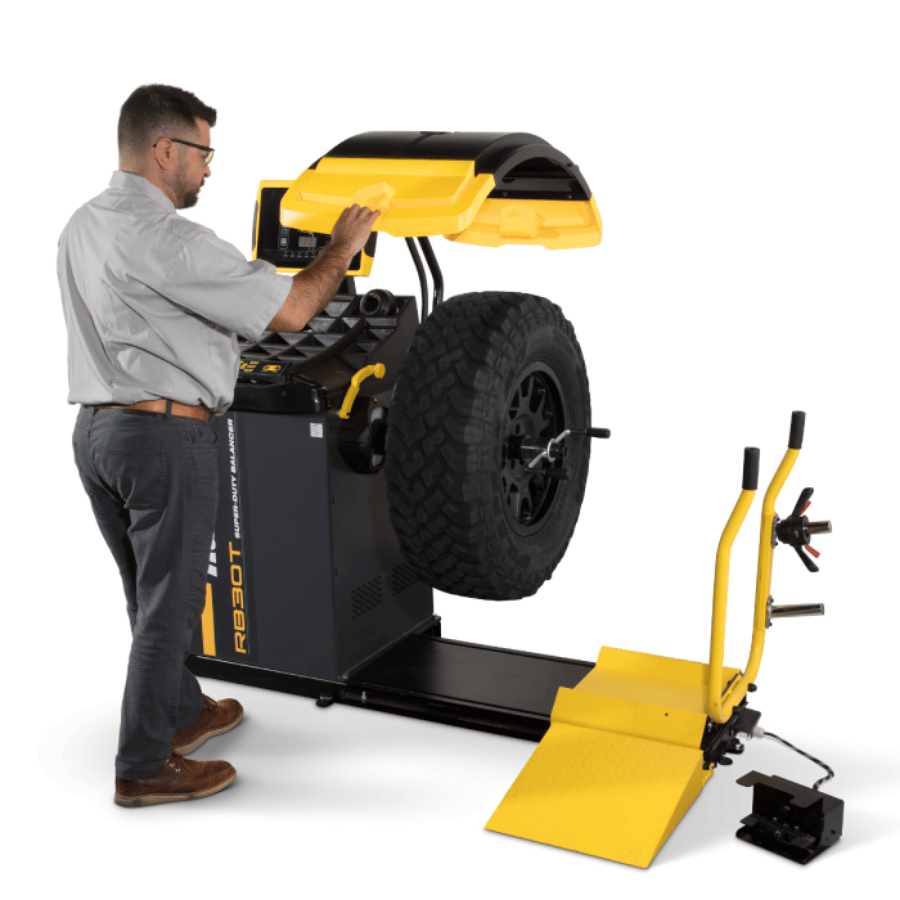

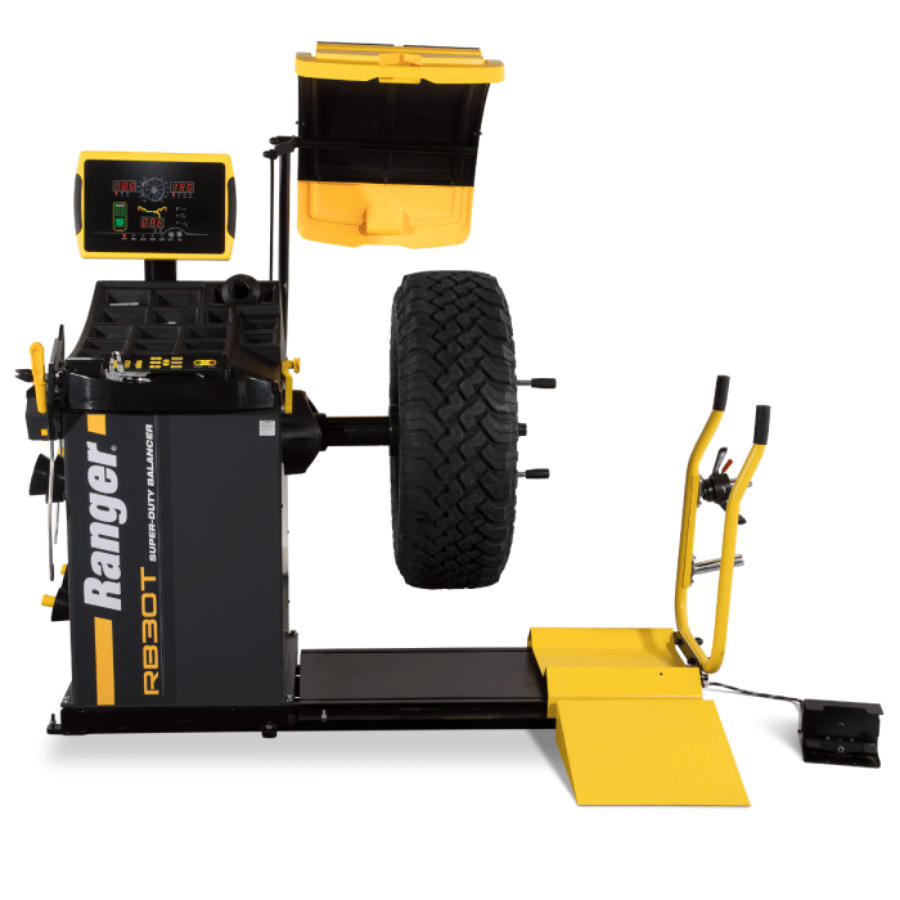

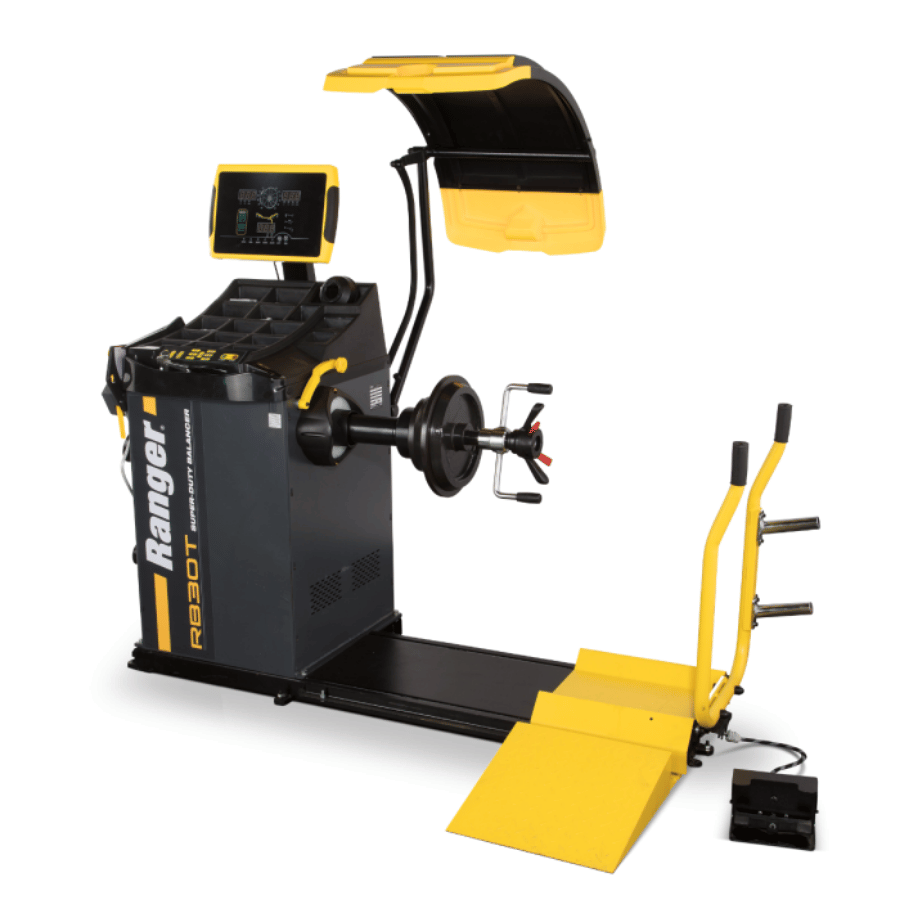

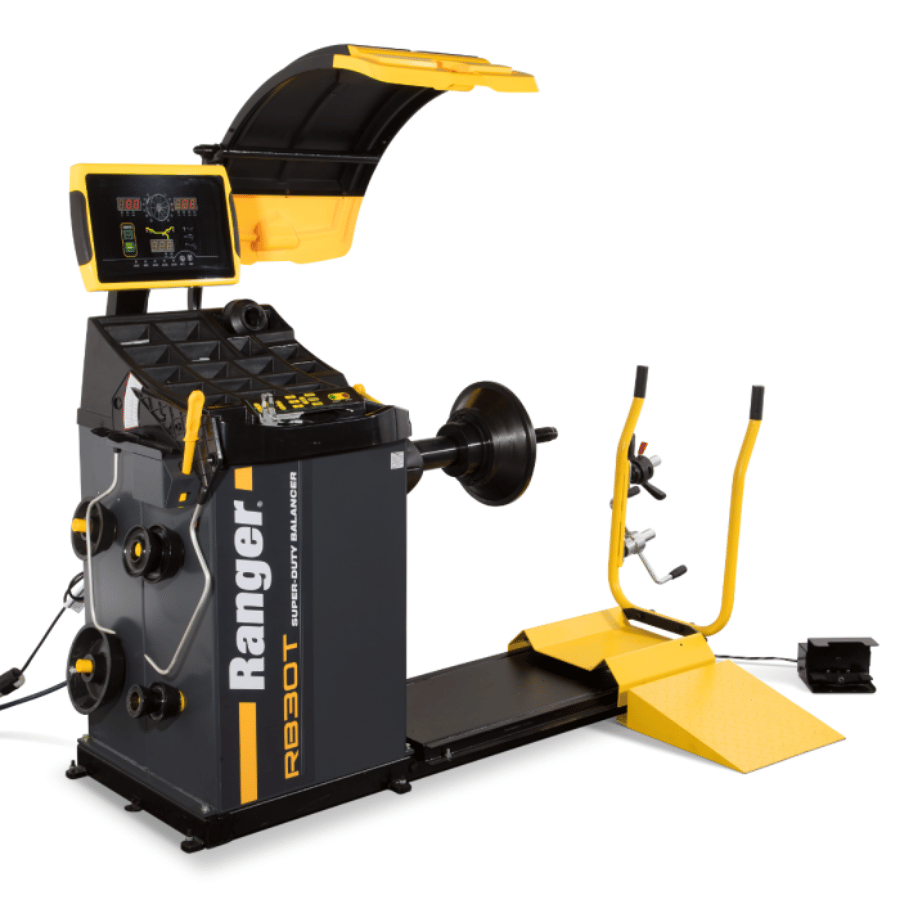

Ranger RB30T Heavy-Duty Truck Wheel Balancer

Ranger RB30T Truck Wheel Balancer for Every Wheel in the Fleet, From OTR to Passenger Cars

The Ranger RB30T is a heavy-duty truck wheel balancer built from the ground up for commercial workloads, not a passenger machine with bigger cones bolted on. It balances wheels up to 150 kg and 1,251 mm diameter, switches between truck and car mode at the push of a button, and turns a full truck assembly around in about 20 seconds. For fleet workshops and high-volume tyre shops chasing throughput, it's the machine that keeps vibration complaints off the phone and vehicles moving through the bay.

Why the RB30T Earns its Spot on the Shop Floor

- Genuine heavy-duty capacity: wheels up to 150 kg, tyre diameters to 1,251 mm and widths to 508 mm, covering buses, semis, OTR and light trucks on one machine
- Fast cycle times: 7 seconds for car wheels, around 20 seconds for full truck assemblies, with truck or car mode one button away and no recalibration between them
- Drive-Check™ smart balancing: a 64-bit processor and quartz piezoelectric sensors detect imbalance across longitudinal, transverse and shear axes, then recommend the most efficient correction. No spin-and-guess

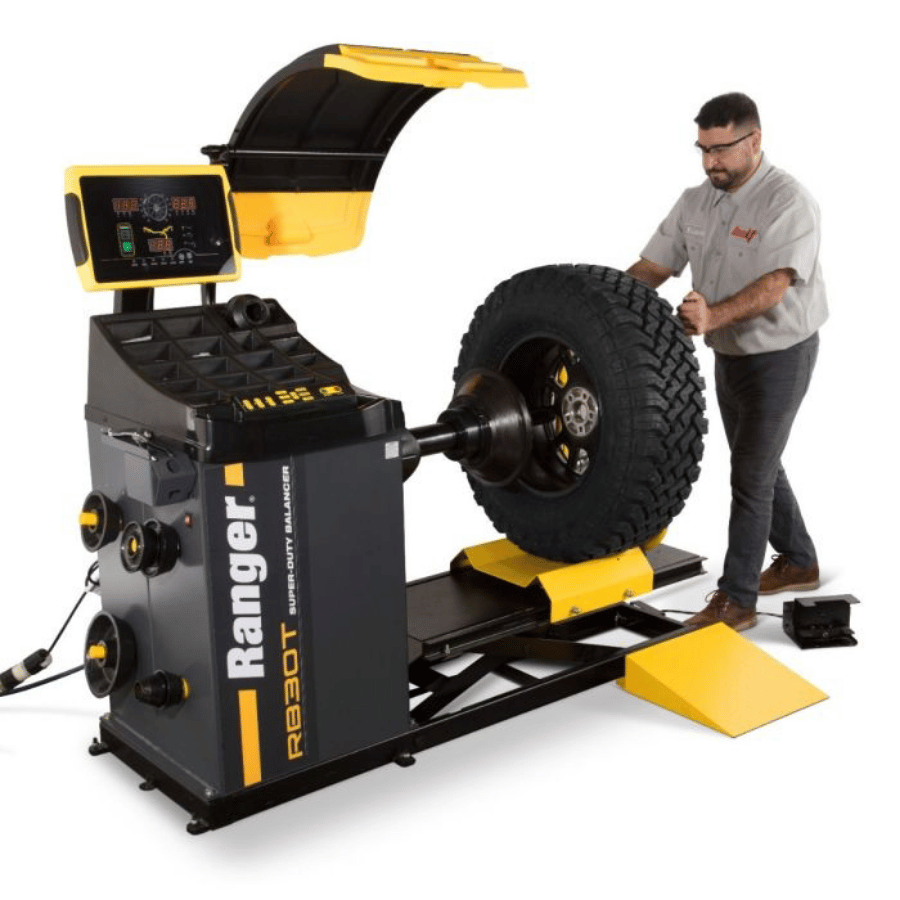

- Built-in pneumatic wheel lift raises up to 150 kg, so your technicians aren't muscling truck wheels onto the shaft. Less strain, fewer injuries, faster mounting
- Accurate weight placement: electro-pneumatic braking locks the wheel at top or bottom dead centre, with LED indicators guiding clip-on weight installation and an optional laser for 6 o'clock adhesive weights on alloys
- Full commercial adaptor kit in the box: every cone and adaptor needed to start balancing from day one, no upsell required

Balancing accuracy runs to ±1 gram in car mode and ±12.5 grams in truck mode, with five balancing modes (dynamic, static, ALU1, ALU2, ALUS) covering steel and aluminium wheels. Self-calibration keeps it accurate long term, and error-code diagnostics make troubleshooting straightforward.

Ready to Add The RB30T Wheel Balancer to Your Workshop?

Everything included, nothing extra to buy

The RB30T arrives ready to work. In the box: full multi-piece commercial cone and adaptor kit, built-in air regulator and oiler system for the pneumatic lift, and generous onboard storage with a top weight tray, side shelves and cone pegs so everything stays organised for rapid-fire balancing.

Built To Last: The Engineering Behind The Ranger RB30T

Drive-Check™ balancing system
Simulates real-world driving conditions to hunt down the subtle vibrations basic balancers miss. The multi-directional quartz piezoelectric sensor array measures across three axes, and the built-in optimisation mode uses tyre rotation guidance to improve balance on problematic wheels.

40 mm hardened steel shaft
Precision-machined for repeatable clamping accuracy under daily commercial abuse. The self-centering quick-chuck system cuts setup time and improves centering on every wheel.

Three-phase motor with solid-state phase converter
Consistent torque from a standard 240 V single-phase supply, without the maintenance headaches of older drive systems. Balancing speeds run 260 RPM in car mode and 135 RPM in truck mode.

Counter-weighted flywheel and reinforced drive belt
The ribbed nylon-fibre serpentine belt resists wear and slippage under extreme loads, while the counter-weighted flywheel keeps operation smooth on the heaviest assemblies.

Built for harsh conditions
Rated to operate from 0 to 50 degrees C and up to 85 percent humidity, so an Australian summer in a tin shed won't slow it down. Manual or automatic hood-start options let each technician set the workflow that suits them.

Touchpad interface
Intuitive LED guidance with clear operator prompts, dual-unit display switchable between grams/ounces and millimetres/inches, and error-code diagnostics for fast troubleshooting.
