HEXA Trio Classic: 96W Hexagon LED Lighting

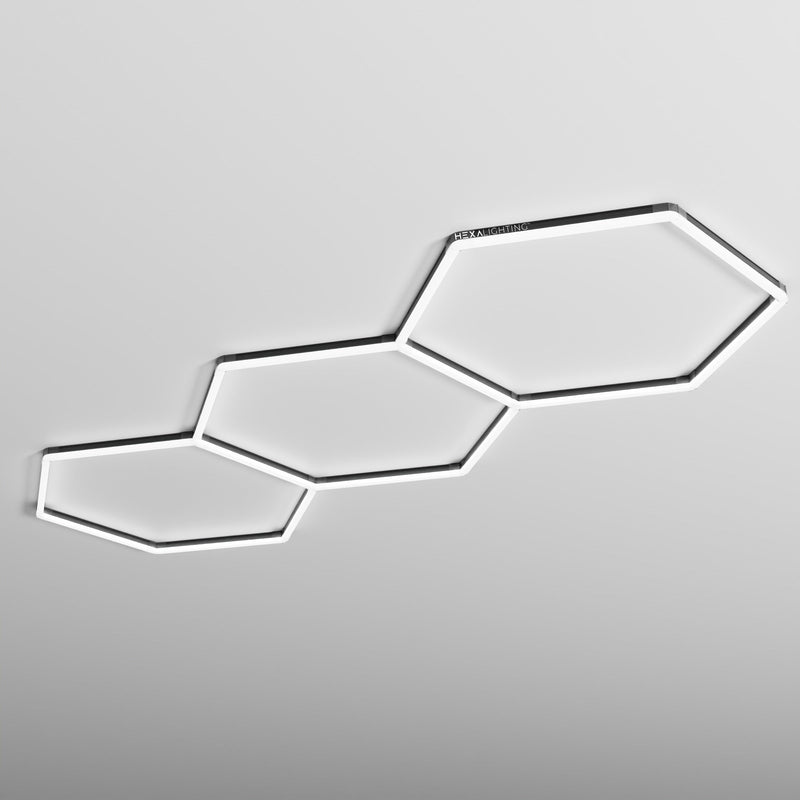

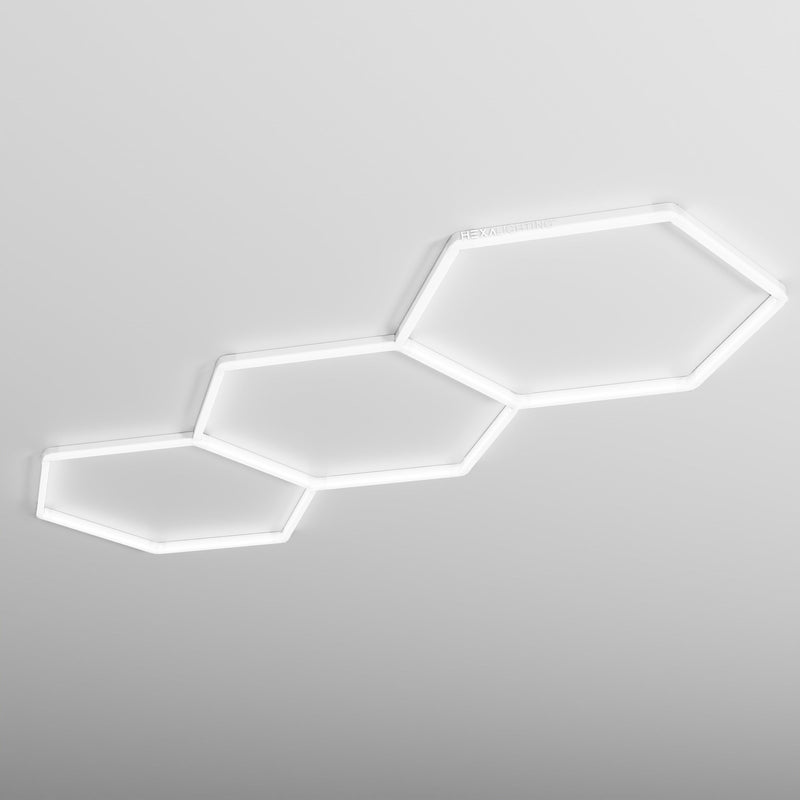

The HEXA Trio Classic (model HX-C16096) is a 96W hexagon LED light system that turns a plain ceiling into a feature. Three hexagons in a straight row, for a long, narrow run of light such as over a car bay. It's built from HEXA's LED light bars and connectors, and comes in a white or black frame with four colour temperatures to choose from.
Why the HEXA Trio Classic Stands Out
- Bright, even light: 7,680 to 10,080 lm from 96W
- High colour accuracy: CRI 85+, so paint, panels and detailing work look true to colour
- Four colour temperatures: warm white 3000K, cool white 4000K, cool daylight 5000K or daylight 6500K
- White or black frame: to suit your ceiling and fit-out
- Plug in or hardwire: power cord with an Australian 3-pin plug, or hardwired by a licensed electrician
- Surface mount or suspend: fixes straight to the ceiling, or hangs with HEXA suspension kits (sold separately)
- Long life: rated to 70,000 hours
- Australian compliance: RCM approved, tested to AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS 61347.1, AS/NZS 61347.2.13 and AS CISPR 15
Suspending the Trio
To hang the Trio Classic instead of surface mounting it, you'll need 14 x HEXA LED Suspension Kits, all in the same drop length. Kits come in white, black or silver, in 1 m, 2 m, 4 m and 6 m drops.
What's in the Box
- 16 x LED light bars
- 9 x Two-way connectors
- 5 x Three-way connectors
- 1 x Power cord
- 1 x Power adapter pin
Specifications
| Model | HX-C16096 |
|---|---|

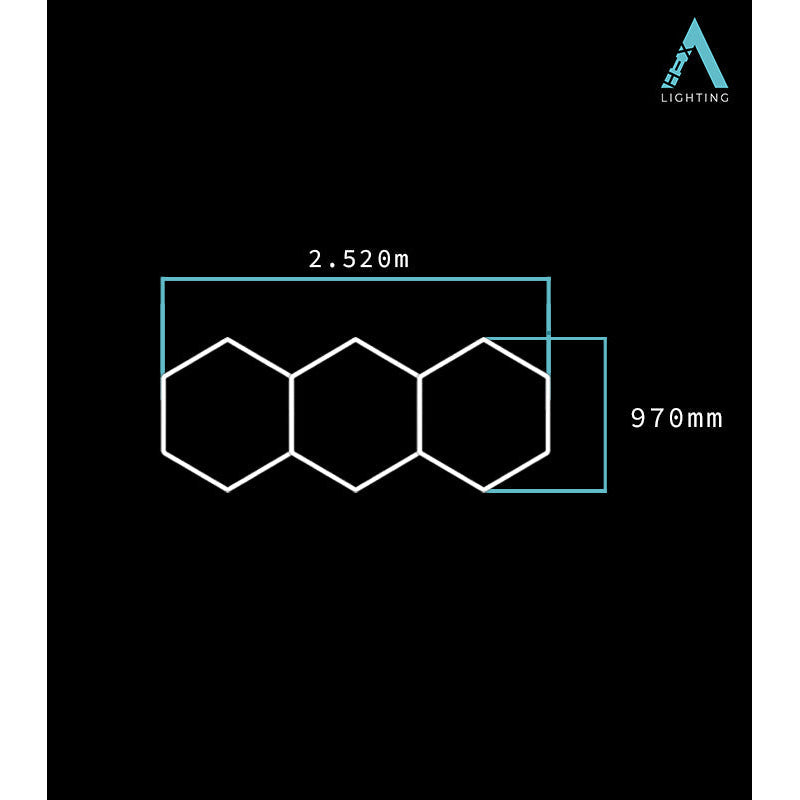

| Overall size | 2520 x 970 mm |
| System wattage | 96W |
| Light output | 7,680 to 10,080 lm |
| Colour rendering | CRI 85+ |
| Colour temperature | 3000K, 4000K, 5000K or 6500K |
| Frame colour | White or black |
| Dimmable | No |
| Ingress protection | IP20 (indoor, dry locations) |
| Connection | Power cord with Australian 3-pin plug, or hardwired by a licensed electrician |
| Mounting | Surface mounted or suspended |
| Rated lifespan | 70,000 hours |
| Compliance | RCM; AS/NZS 60598.1, 60598.2.2, 61347.1, 61347.2.13; AS CISPR 15 |
Warranty
HEXA covers the Trio Classic with a 7 year warranty for residential use or 5 years for commercial use. The warranty assumes up to 8 hours a day of use in residential settings and up to 16 hours a day in commercial settings.
