HEXA Large Triple Garage Classic: 1,296W Hexagon LED Lighting

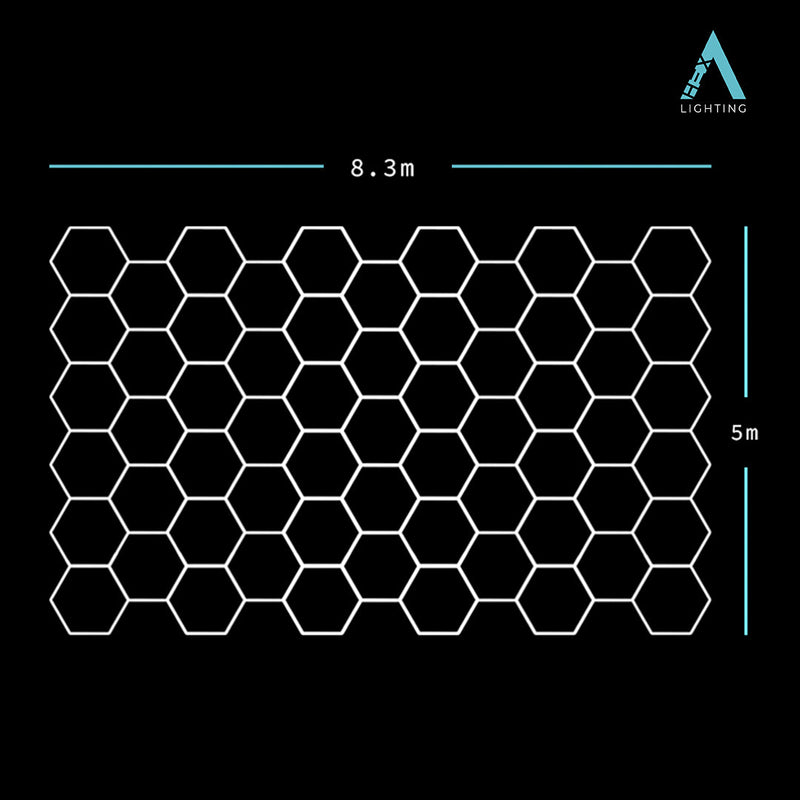

The HEXA Large Triple Garage Classic (model HX-C2161296) is a 1,296W hexagon LED light system that turns a plain ceiling into a feature. A honeycomb grid measuring 8.3 x 5 m, sized for a triple garage ceiling. It's built from HEXA's LED light bars and connectors, and comes in a white or black frame with four colour temperatures to choose from.
Why the HEXA Large Triple Garage Classic Stands Out
- Bright, even light: 116,640 to 136,080 lm from 1,296W
- High colour accuracy: CRI 85+, so paint, panels and detailing work look true to colour
- Four colour temperatures: warm white 3000K, cool white 4000K, cool daylight 5000K or daylight 6500K
- White or black frame: to suit your ceiling and fit-out
- Plug in or hardwire: power cords with Australian 3-pin plugs, or hardwired by a licensed electrician
- Surface mount or suspend: fixes straight to the ceiling, or hangs with HEXA suspension kits (sold separately)
- Long life: rated to 70,000 hours
- Australian compliance: RCM approved, tested to AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS 61347.1, AS/NZS 61347.2.13 and AS CISPR 15
Suspending the Large Triple Garage
To hang the Large Triple Garage Classic instead of surface mounting it, you'll need 79 x HEXA LED Suspension Kits, all in the same drop length. Kits come in white, black or silver, in 1 m, 2 m, 4 m and 6 m drops.
Specifications
| Model | HX-C2161296 |
|---|---|
| Overall size | 8300 x 5000 mm |
| System wattage | 1,296W |
| Light output | 116,640 to 136,080 lm |
| Colour rendering | CRI 85+ |
| Colour temperature | 3000K, 4000K, 5000K or 6500K |
| Frame colour | White or black |
| Dimmable | No |
| Ingress protection | IP20 (indoor, dry locations) |
| Connection | Two power cords with Australian 3-pin plugs, or hardwired by a licensed electrician |
| Mounting | Surface mounted or suspended |
| Rated lifespan | 70,000 hours |
| Compliance | RCM; AS/NZS 60598.1, 60598.2.2, 61347.1, 61347.2.13; AS CISPR 15 |
Warranty
HEXA covers the Large Triple Garage Classic with a 7 year warranty for residential use or 5 years for commercial use. The warranty assumes up to 8 hours a day of use in residential settings and up to 16 hours a day in commercial settings.
