HEXA Grid Linear LED Garage Light
TALK TO A GARAGE EXPERT
Not sure where to start with your garage setup? We’ve helped countless customers design smarter, more efficient garages and we can do the same for you. Contact us today and let’s map it out.
HEXA Grid: 352W Linear LED Lighting
The HEXA Grid (model HX-ML22352) is a 352W linear LED light system from HEXA's Linear range. A 4.84 x 2.43 m frame divided into eight 1.2 m squares, for even, wall to wall light across a garage, workshop or gym. It comes in a white or black frame with four colour temperatures, and plugs straight into a standard power point.
Why the HEXA Grid Stands Out
- Bright, even light: 31,680 to 38,720 lm from 352W
- High colour accuracy: CRI 85+, so paint, panels and detailing work look true to colour
- Four colour temperatures: warm white 3000K, cool white 4000K, cool daylight 5000K or daylight 6500K

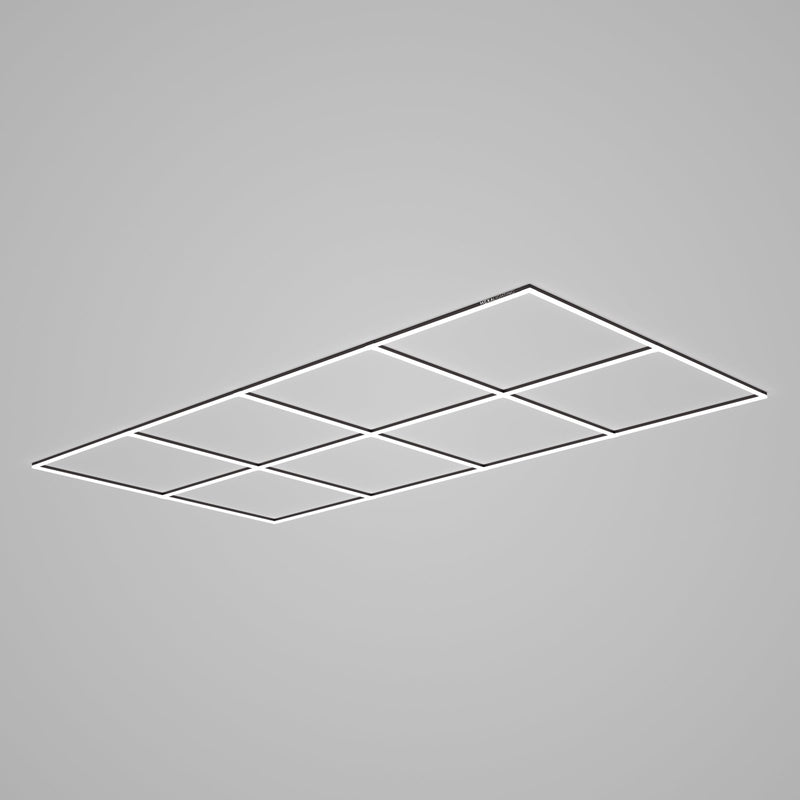

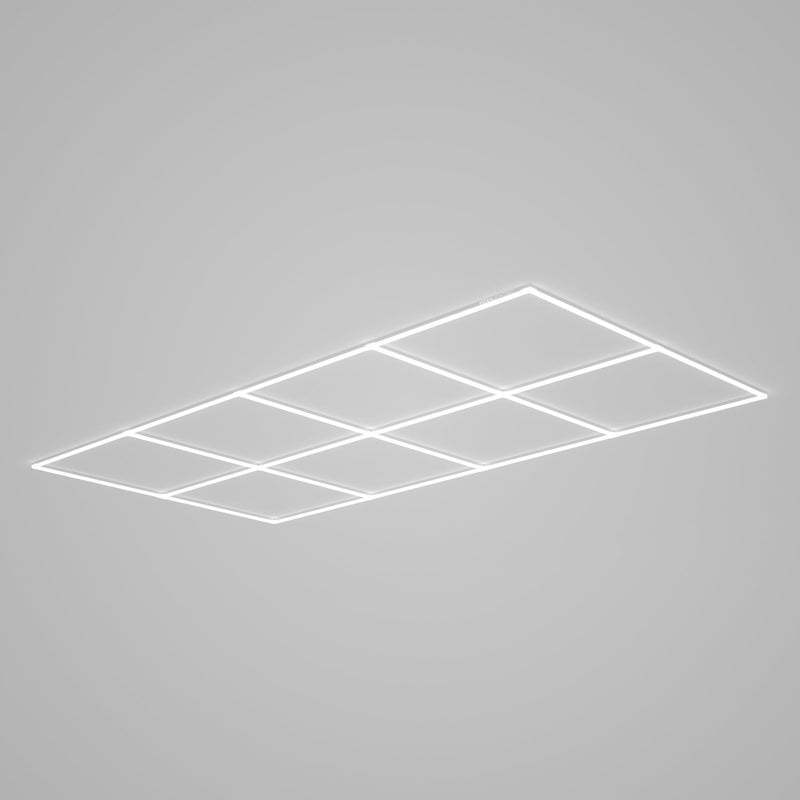

- White or black frame: to suit your ceiling and fit-out
- Plug and play: power cord with an Australian 3-pin plug and an integrated driver
- Surface mount or suspend: fixes straight to the ceiling, or hangs with HEXA suspension kits (sold separately)
- Long life: rated to 70,000 hours
- RCM certified: compliant with Australian electrical standards
Suspending the Grid
To hang the Grid instead of surface mounting it, you'll need 15 x HEXA LED Suspension Kits, all in the same drop length. Kits come in white, black or silver, in 1 m, 2 m, 4 m and 6 m drops.
What's in the Box
- 22 x 1200 mm LED bars
- Adapters to suit
- 1 x power cord with Australian 3-pin plug
Specifications
| Model | HX-ML22352 |
|---|---|
| Overall size | 4840 x 2430 mm |
| System wattage | 352W |
| Light output | 31,680 to 38,720 lm |
| Colour rendering | CRI 85+ |
| Colour temperature | 3000K, 4000K, 5000K or 6500K |
| Frame colour | White or black |
| Dimmable | No |
| Ingress protection | IP20 (indoor, dry locations) |
| Connection | Power cord with Australian 3-pin plug, integrated driver |
| Mounting | Surface mounted or suspended |
| Rated lifespan | 70,000 hours |
| Compliance | RCM certified |
Warranty
HEXA covers the Grid with a 7 year warranty for residential use or 5 years for commercial use. The warranty assumes up to 8 hours a day of use in residential settings and up to 16 hours a day in commercial settings.
