HEXA Double Quad: 320W Linear LED Lighting

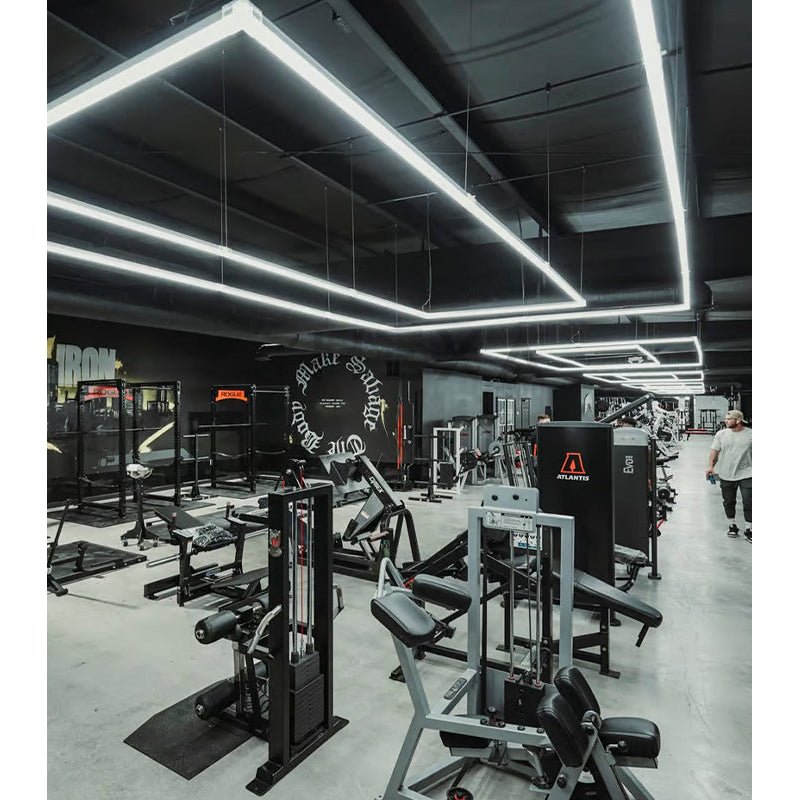

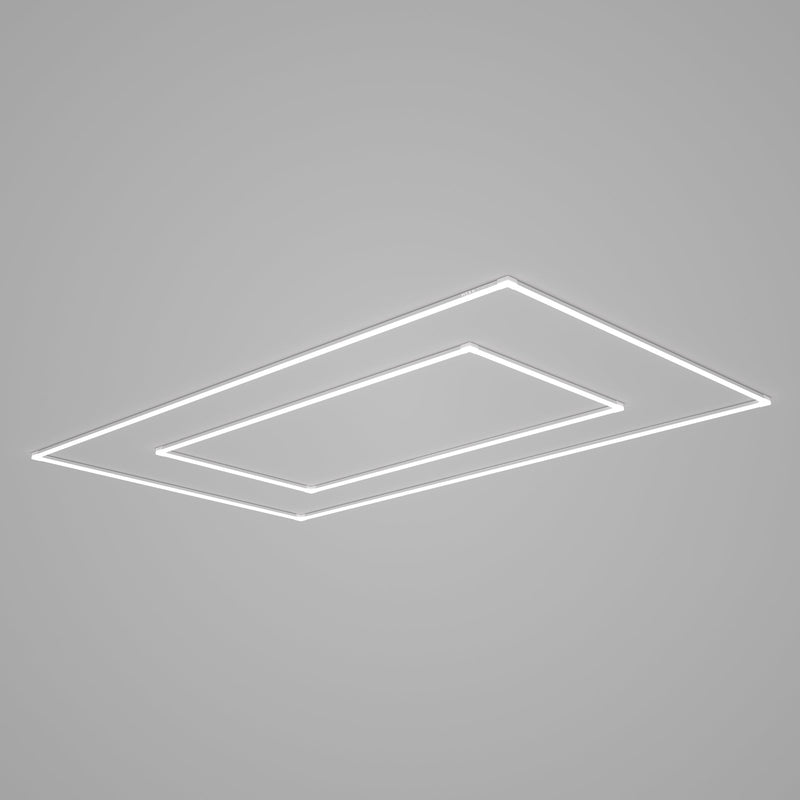

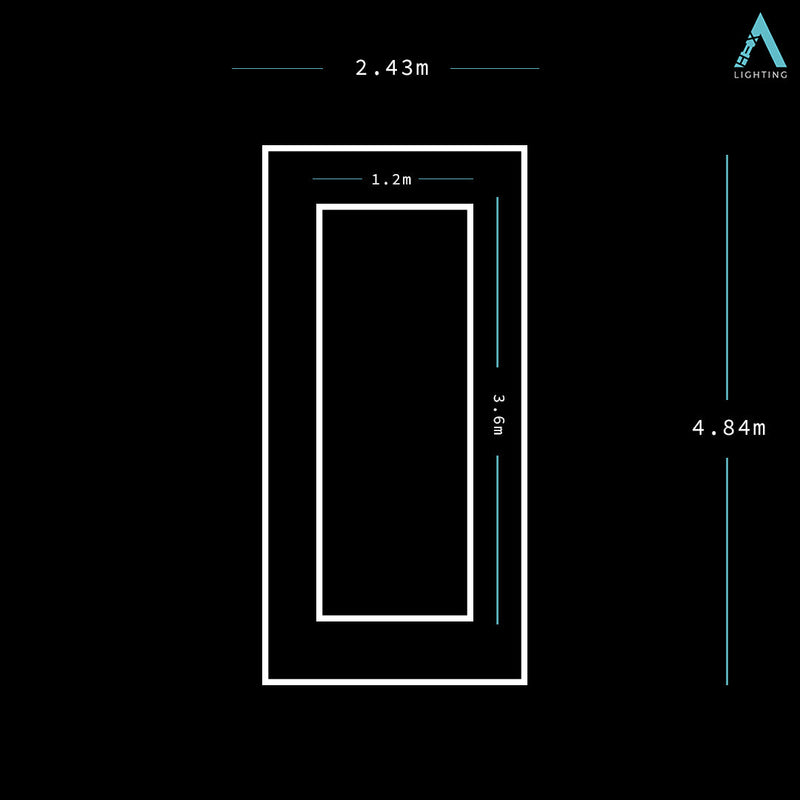

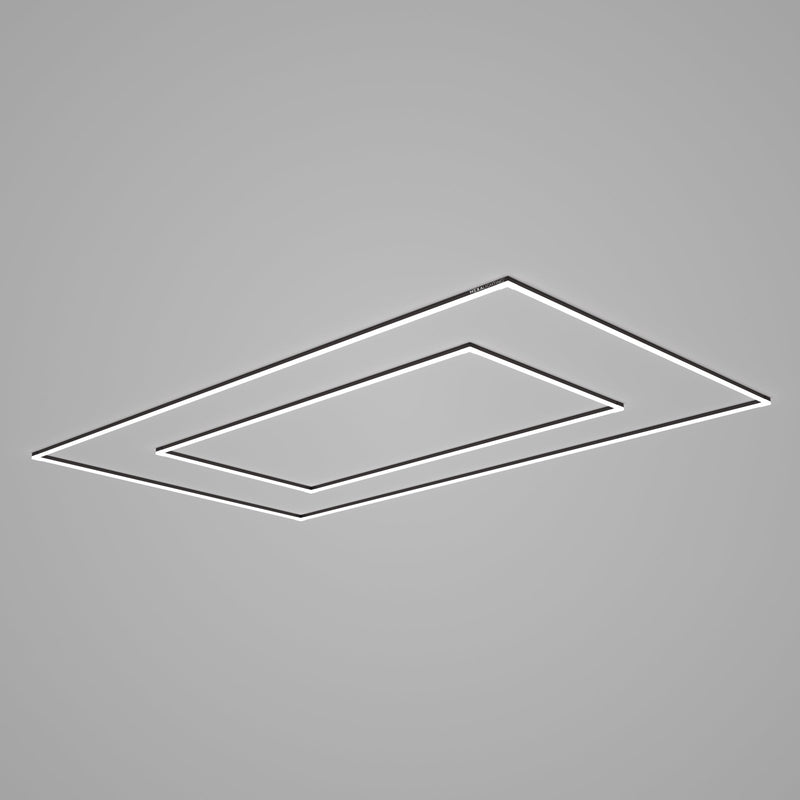

The HEXA Double Quad (model HX-ML20320) is a 320W linear LED light system from HEXA's Linear range. Two rectangles of linear LED light, one inside the other, within a 4.84 x 2.43 m footprint, for a layered look over a garage or showroom. It comes in a white or black frame with four colour temperatures, and plugs straight into a standard power point.
Why the HEXA Double Quad Stands Out
- Bright, even light: 28,800 to 35,200 lm from 320W
- High colour accuracy: CRI 85+, so paint, panels and detailing work look true to colour
- Four colour temperatures: warm white 3000K, cool white 4000K, cool daylight 5000K or daylight 6500K
- White or black frame: to suit your ceiling and fit-out
- Plug and play: power cord with an Australian 3-pin plug and an integrated driver
- Surface mount or suspend: fixes straight to the ceiling, or hangs with HEXA suspension kits (sold separately)
- Long life: rated to 70,000 hours
- RCM certified: compliant with Australian electrical standards
Suspending the Double Quad
To hang the Double Quad instead of surface mounting it, you'll need 20 x HEXA LED Suspension Kits, all in the same drop length. Kits come in white, black or silver, in 1 m, 2 m, 4 m and 6 m drops.
What's in the Box
- 20 x 1200 mm LED bars
- Adapters to suit
- 1 x power cord with Australian 3-pin plug
Specifications
| Model | HX-ML20320 |
|---|---|
| Overall size | 4840 x 2430 mm |
| System wattage | 320W |
| Light output | 28,800 to 35,200 lm |
| Colour rendering | CRI 85+ |
| Colour temperature | 3000K, 4000K, 5000K or 6500K |
| Frame colour | White or black |
| Dimmable | No |
| Ingress protection | IP20 (indoor, dry locations) |
| Connection | Power cord with Australian 3-pin plug, integrated driver |
| Mounting | Surface mounted or suspended |
| Rated lifespan | 70,000 hours |
| Compliance | RCM certified |
Warranty
HEXA covers the Double Quad with a 7 year warranty for residential use or 5 years for commercial use. The warranty assumes up to 8 hours a day of use in residential settings and up to 16 hours a day in commercial settings.
