HEXA Double Cube Large: 192W Linear LED Lighting

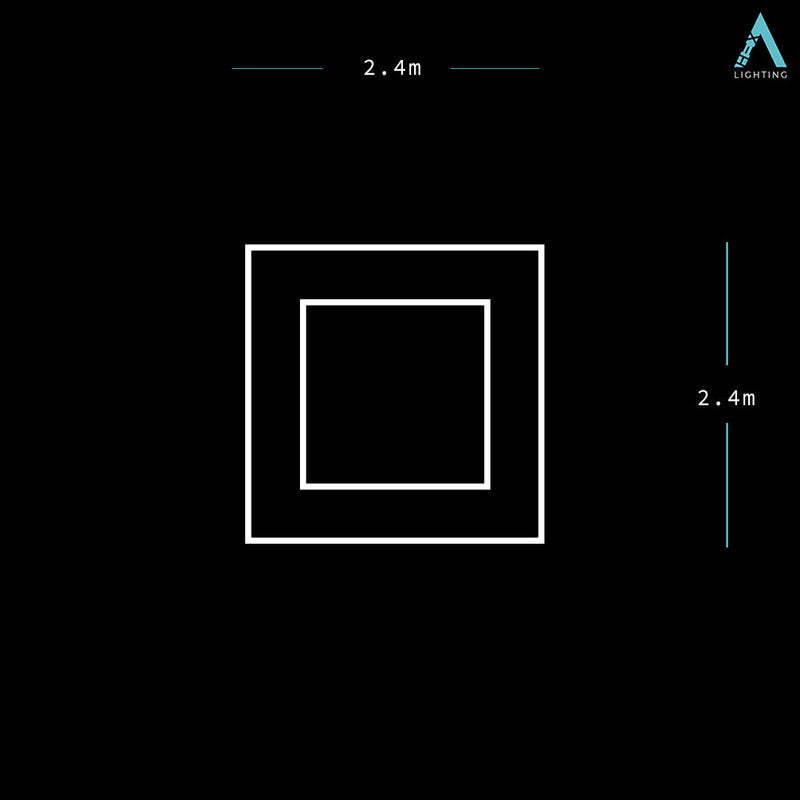

The HEXA Double Cube Large (model HX-ML16192) is a 192W linear LED light system from HEXA's Linear range. A 2.4 m square of 1200 mm linear bars around an inner 1.2 m square, a large layered form for double garages, showrooms and open commercial spaces. It comes in a white or black frame with four colour temperatures, and plugs straight into a standard power point.
Why the HEXA Double Cube Large Stands Out
- Bright, even light: 17,280 to 21,120 lm from 192W
- High colour accuracy: CRI 85+, so paint, panels and detailing work look true to colour
- Four colour temperatures: warm white 3000K, cool white 4000K, cool daylight 5000K or daylight 6500K

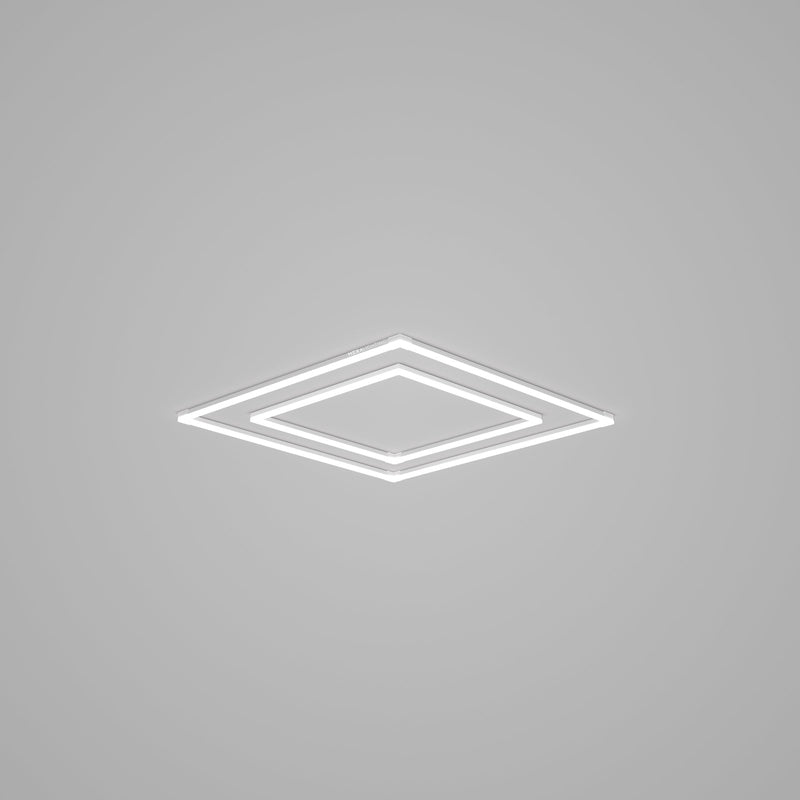

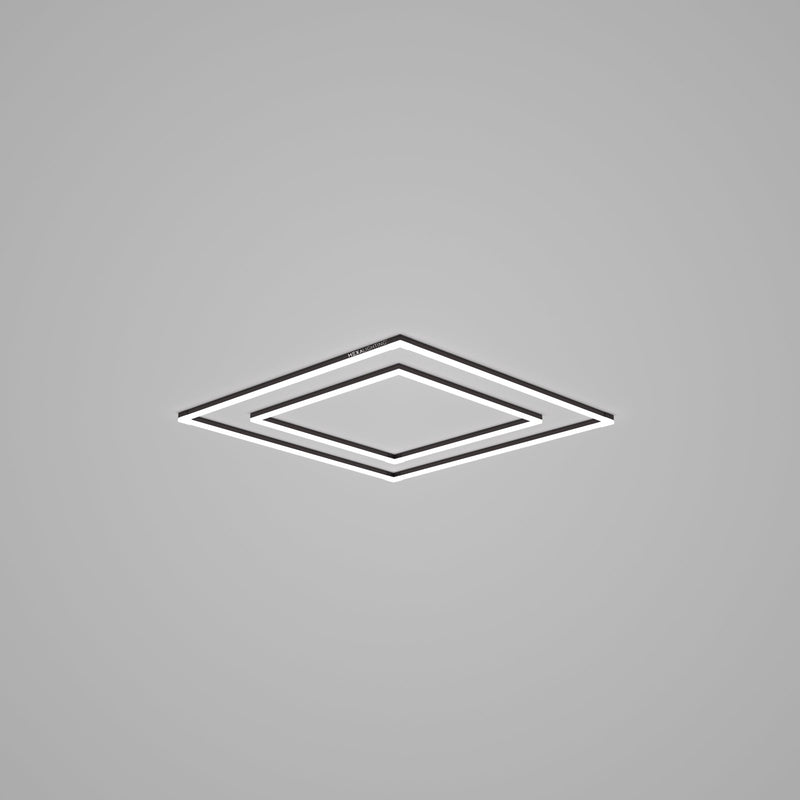

- White or black frame: to suit your ceiling and fit-out
- Plug and play: power cord with an Australian 3-pin plug and an integrated driver
- Surface mount or suspend: fixes straight to the ceiling, or hangs with HEXA suspension kits (sold separately)
- Long life: rated to 70,000 hours
- RCM certified: compliant with Australian electrical standards
Suspending the Double Cube Large
To hang the Double Cube Large instead of surface mounting it, you'll need 16 x HEXA LED Suspension Kits, all in the same drop length. Kits come in white, black or silver, in 1 m, 2 m, 4 m and 6 m drops.
What's in the Box
- 8 x 1200 mm LED bars
- 8 x 600 mm LED bars
- Adapters to suit
- 1 x power cord with Australian 3-pin plug
Specifications
| Model | HX-ML16192 |
|---|---|
| Overall size | 2430 x 2430 mm |
| System wattage | 192W |
| Light output | 17,280 to 21,120 lm |
| Colour rendering | CRI 85+ |
| Colour temperature | 3000K, 4000K, 5000K or 6500K |
| Frame colour | White or black |
| Dimmable | No |
| Ingress protection | IP20 (indoor, dry locations) |
| Connection | Power cord with Australian 3-pin plug, integrated driver |
| Mounting | Surface mounted or suspended |
| Rated lifespan | 70,000 hours |
| Compliance | RCM certified |
Warranty
HEXA covers the Double Cube Large with a 7 year warranty for residential use or 5 years for commercial use. The warranty assumes up to 8 hours a day of use in residential settings and up to 16 hours a day in commercial settings.
