SKU 5160120
Ergochair ERGO-GLIDE Ergonomic Height-Adjustable Creeper Seat
by Bendpak
$389.00
TALK TO A GARAGE EXPERT
Not sure where to start with your garage setup? We’ve helped countless customers design smarter, more efficient garages and we can do the same for you. Contact us today and let’s map it out.

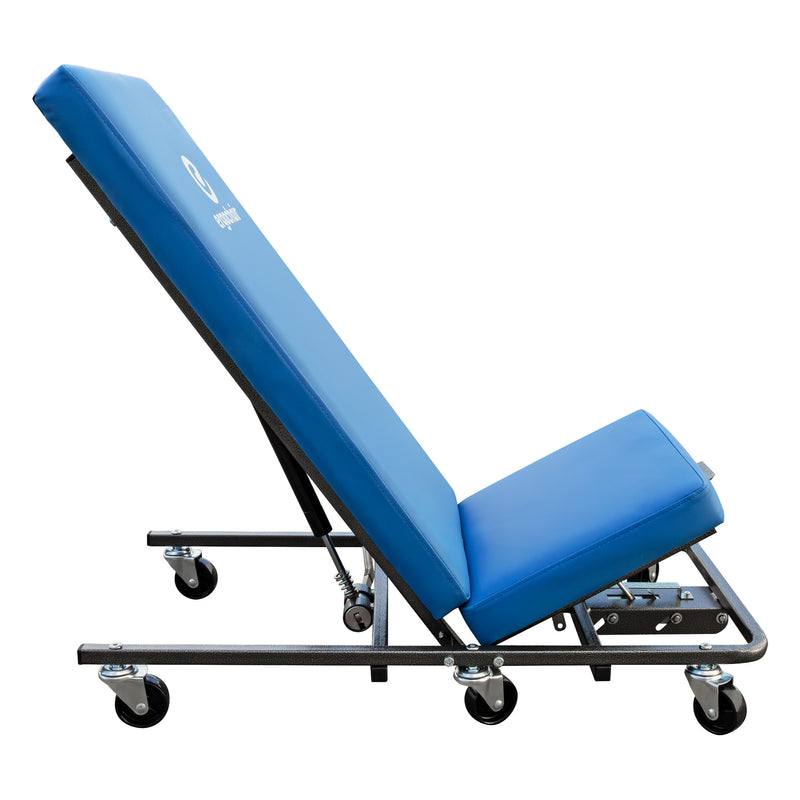

Ergochair ERGO-GLIDE Creeper Seat: One Seat for Under the Car and Beside It

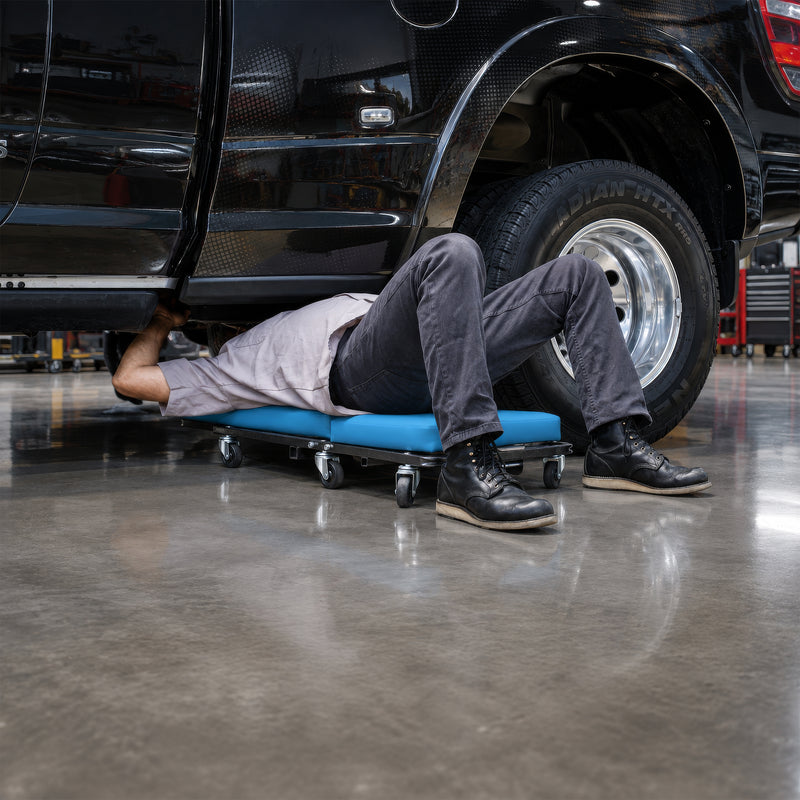

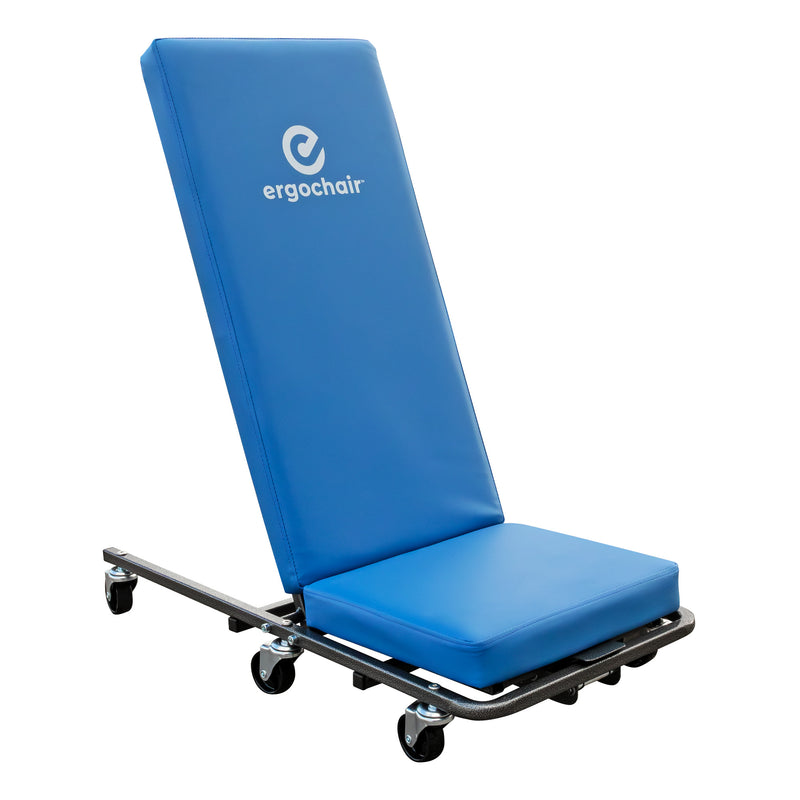

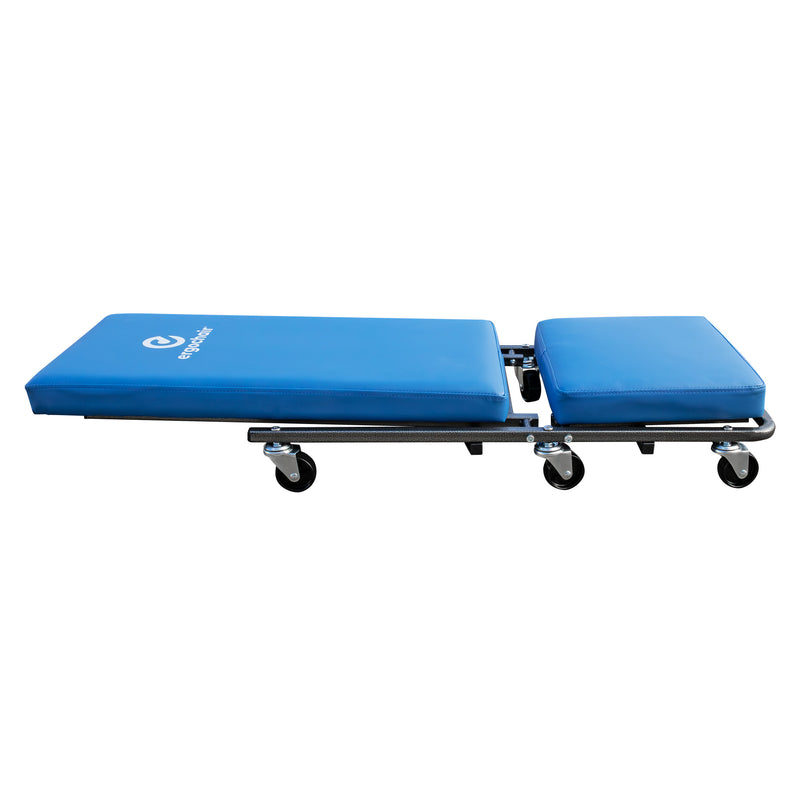

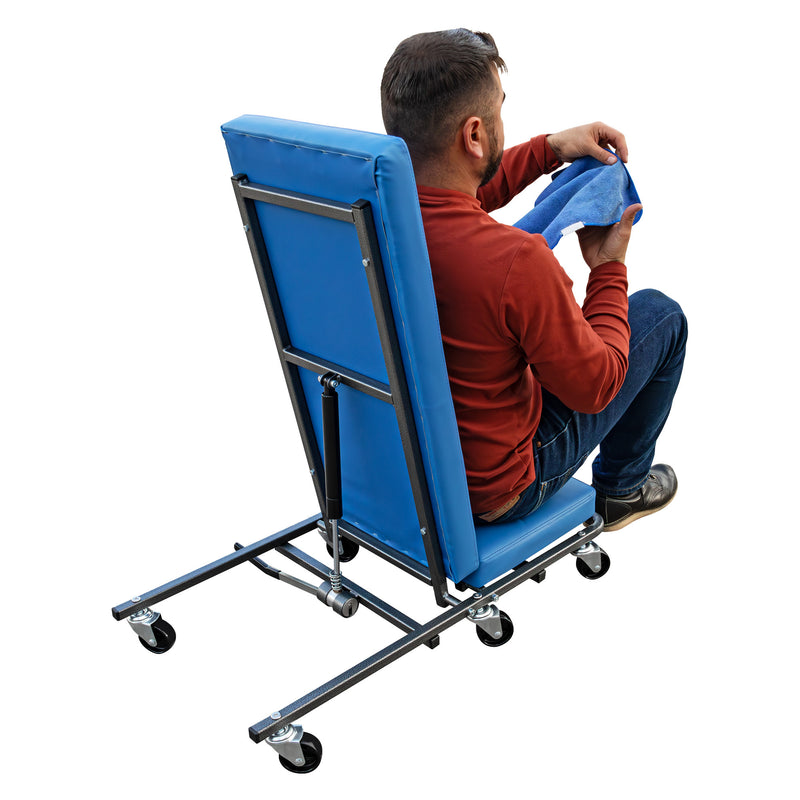

The Bendpak Ergochair ERGO-GLIDE is a creeper and a shop seat in one. Lay the backrest flat and roll under the car, or bring it up and sit at wheel height for brakes, tyres and detailing. A gas spring takes the effort out of moving the backrest, and the seat angle locks in three positions so you can set it to suit the job.
Key Features of the Ergo Glide Creeper Seat

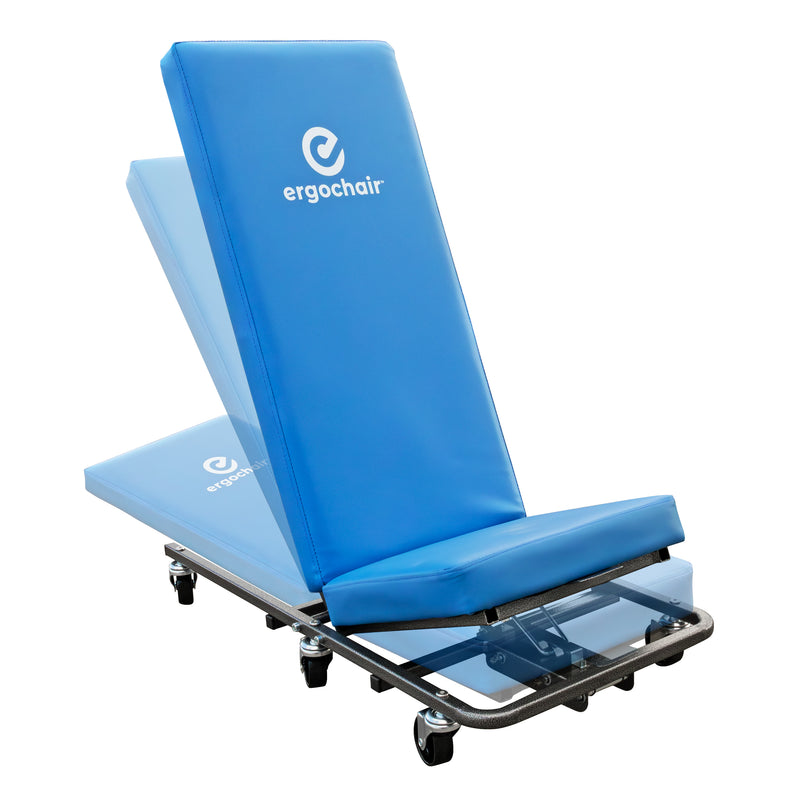

- Gas spring backrest: reclines from about 0° to 70°, so you can go from flat to upright with one movement
- Adjustable seat angle: mechanical lock with three positions in 10° steps, up to about 30°
- Six 360° swivel casters: 64 mm (2.5") non-marring wheels that roll quietly across the shop floor

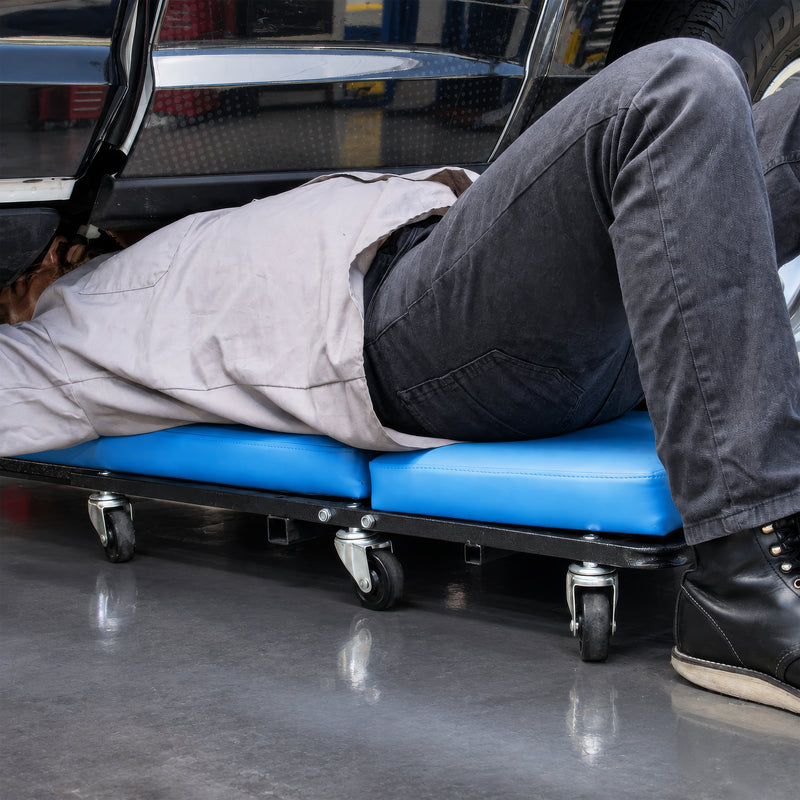

- Padded marine vinyl: thick padding on the seat and backrest, with a textured non-slip surface that resists abrasion, chemicals and oil
- Steel frame: fully powder coated, welded square tube steel
- 272 kg (600 lb) maximum load
It's built for wheel and brake work, detailing, assembly and general maintenance, whether you're in a home garage or a busy workshop.
Ergochair ERGO-GLIDE Specifications
| Specification | Metric | Imperial |
|---|---|---|
| Maximum load | 272 kg | 600 lb |
| Weight | 19 kg | 41.25 lb |
| Length, backrest up | 840 mm | 33" |
| Length, backrest down | 1,150 mm | 45.25" |
| Overall width | 530 mm | 20.75" |
| Frame width | 430 mm | 17" |
| Seat height (down) | 161 mm | 6.25" |
| Backrest height (up) | 800 mm | 31.5" |
| Seat and backrest width | 376 mm | 14.75" |
| Ground clearance | Approx. 76 mm | Approx. 3" |
| Seat angle | Approx. 0° to 30°, 3 locking positions | |
| Backrest angle | Approx. 0° to 70°, gas spring | |
| Casters | Six 360° swivel, 64 mm x 19 mm (2.5" x 0.75") | |
What's Included
- Seat and backrest
- Gas spring assembly and spring release
- Six caster assemblies
Safe Use
- Maximum load is 272 kg (600 lb), including you and any parts you're holding
- Use on hard, flat surfaces only. Not suitable for cracked or broken concrete
- Sit down gently. Don't stand on it or use it as a dolly or skateboard
- Keep hands and feet clear when adjusting the seat or backrest
- Check for loose or damaged parts before each use
Warranty
The Ergochair ERGO-GLIDE comes with a 2 year warranty.
