When Standard Presses Struggle, Step Up to the Borum BSP100TA 100,000kg Air Hydraulic Press

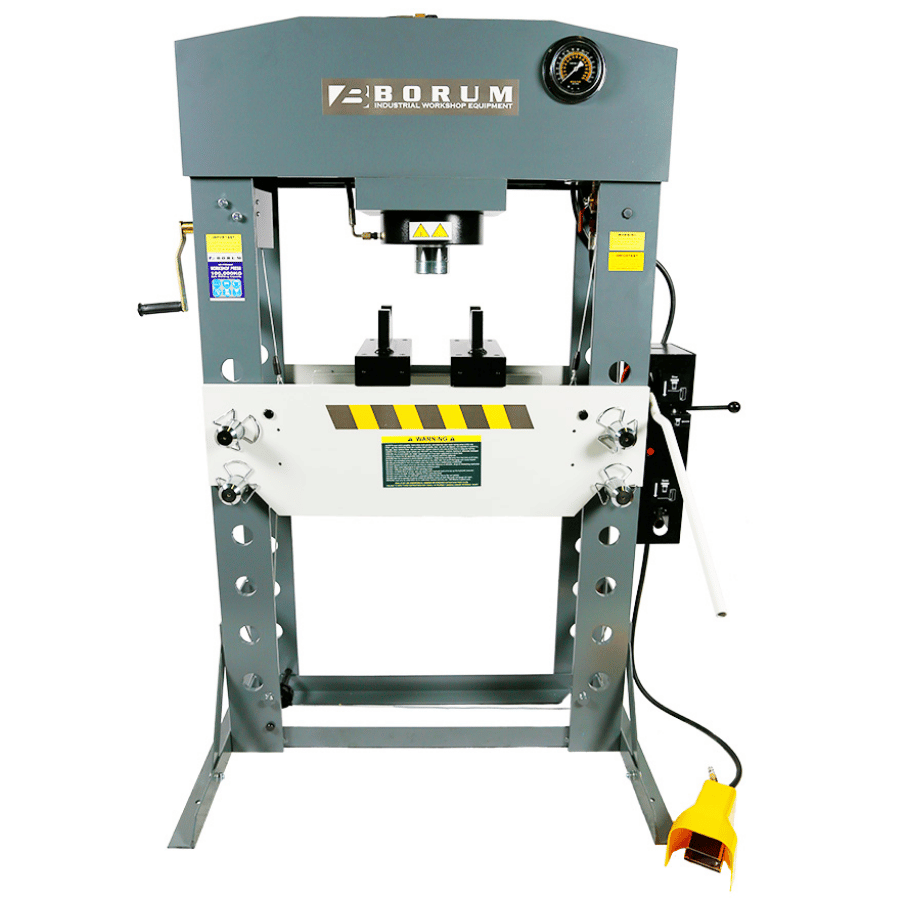

The Borum BSP100TA 100,000 kg Air Hydraulic Workshop Press is a heavy-duty H-frame press built for serious automotive, truck, fleet and industrial repair work where you need controlled high-pressure force for pressing, bending, straightening and forming jobs. With a 100 tonne safe working capacity and a wide 787 mm bed, it is ideal for bearings, bushes, hubs, axles and structural components that lighter presses simply cannot handle.
For your safety, we include the Polycarbonate TQB Shop Press Safety Barrier (SGUARD-4) completely free of charge — a $360 value.
How Does the Borum BSP100TA Improve Workshop Productivity?

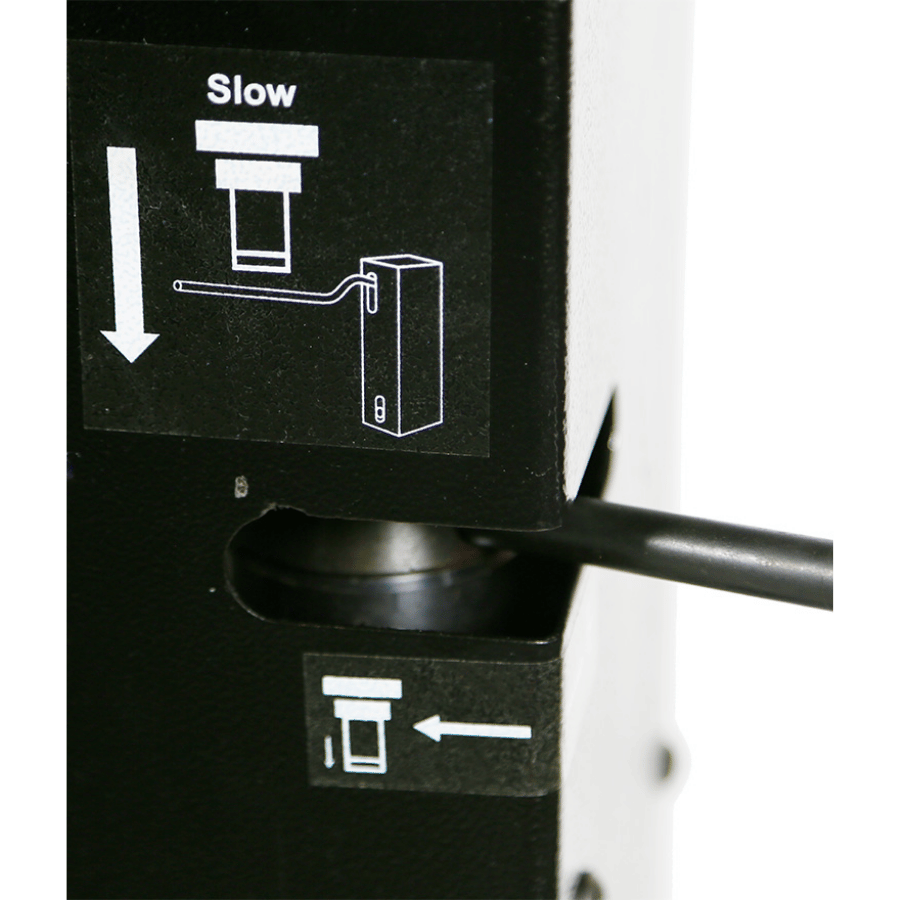

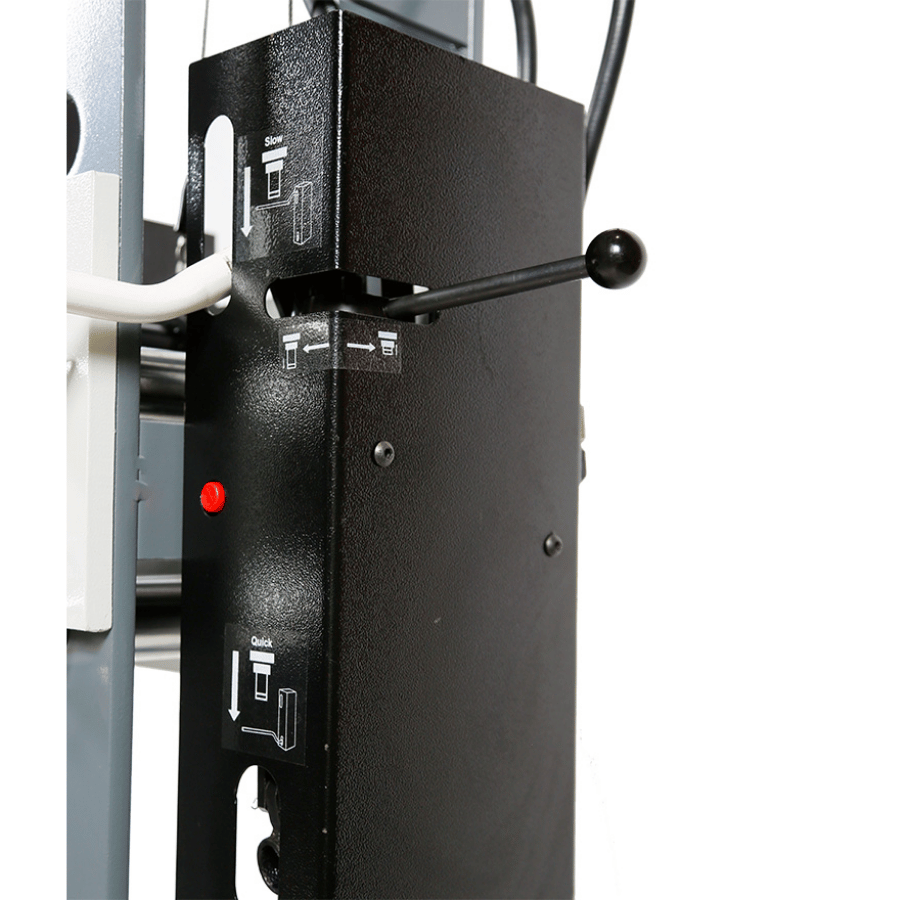

This Borum Industrial press can be operated by air over hydraulic using the foot pedal for fast approach, then slower high-pressure pressing, or manually via the pump handle when air supply is not available. The 300 mm piston ram stroke, 6-position adjustable bed height and 113–813 mm working range give you flexibility to accommodate a wide variety of jobs and component sizes without constant re-rigging.
Why Choose a 100 Tonne Borum Industrial Air Hydraulic Press?
The BSP100TA uses polished and chromed cylinder, ram and pistons guided by high-performance seals, wear rings and dust seals to maximise seal life and reduce internal wear, giving long service in demanding environments like transport, mining and industrial maintenance. A dual-scale pressure gauge provides clear metric and tonnage readings so you can monitor applied load accurately and avoid over-pressing components, supporting safer and more repeatable work.
BSP100TA Key Specs at a Glance
• Safe working capacity: 100,000 kg (100 tonne)[tqbbrands]
• Working range: 113–813 mm with 6 bed height settings[tqbbrands]
• Bed width: 787 mm, overall height 2048 mm, width 1199 mm, depth 990 mm[tqbbrands]
• Piston ram stroke: 300 mm[tqbbrands]
• Operating air pressure: 110–125 psi[tqbbrands]
• Net weight: approx. 652 kg (about 762 kg crated)
If you need a true industrial-grade press for larger vehicles and heavy components, the Borum BSP100TA offers the strength, control and durability required to handle demanding press work day in, day out.
SHIPPING INFO: These units are very heavy to transport, so we offer free shipping to metro areas. A shipping surcharge may apply for rural, regional, or remote locations. If this applies to your order, we will contact you by email before processing the shipment.
DELIVERY INFO: These units are shipped on a skid/crate. Delivery must be to a business address with forklift access, and a forklift will be required on-site to unload the unit.
Borum BSP100TA Features
- Heavy-duty H-frame constructed of high-grade steel and built to exacting standards for quality and durability

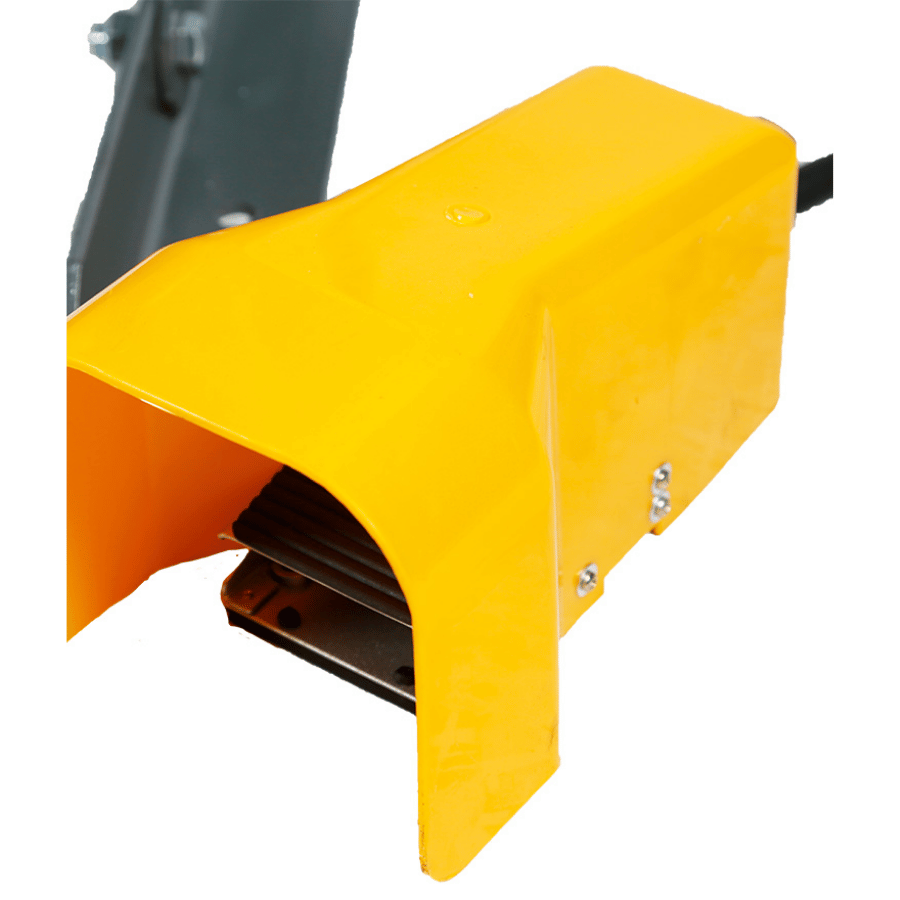

- Foot operated air trigger ram travel control
- 100mm pressure gauge

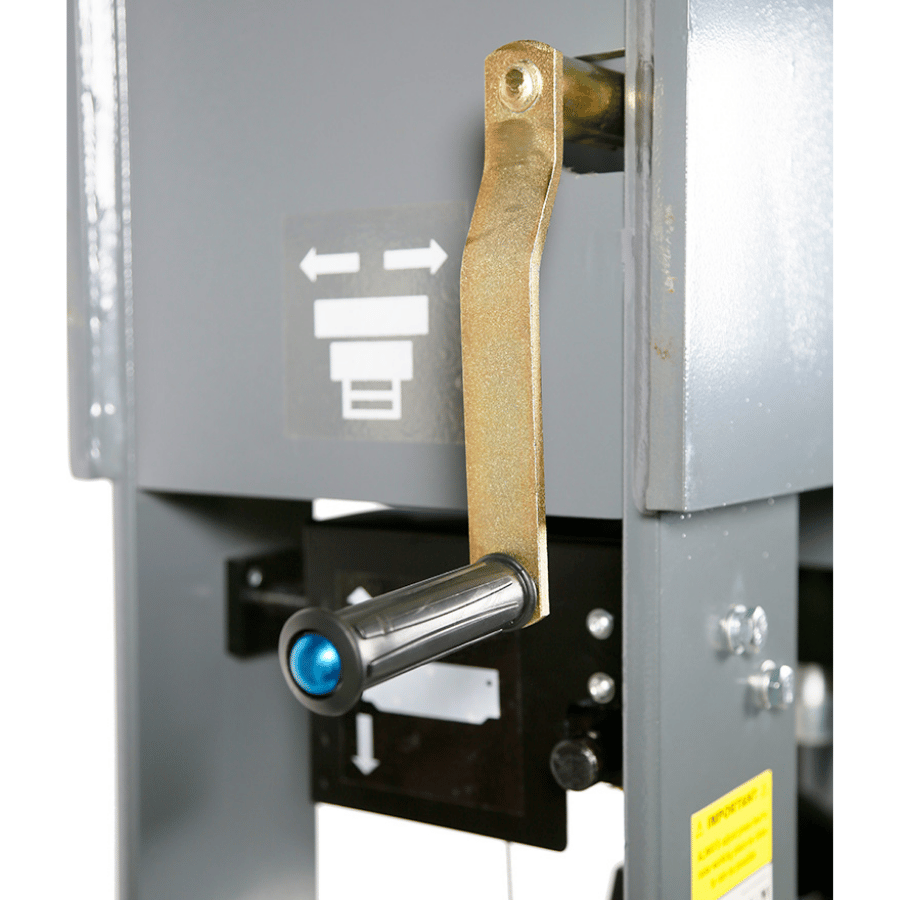

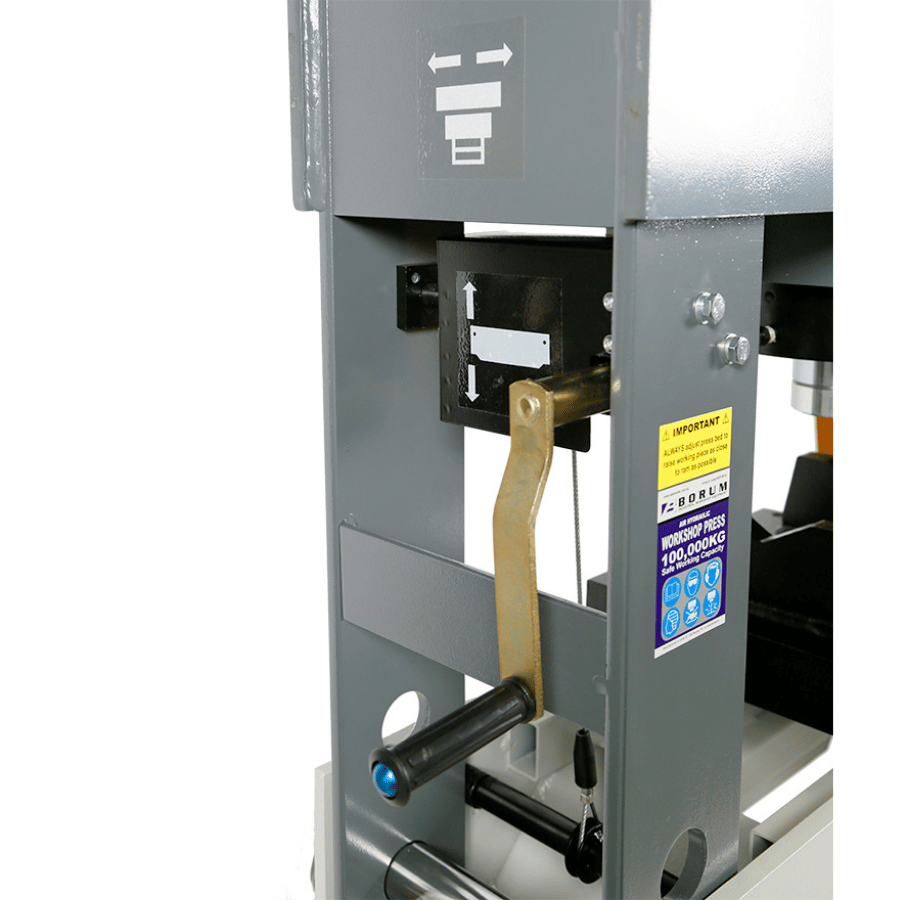

- Table winch system lowers or raises the bed
- High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
- Piston-ram is treated and polished and fitted with backup ring, preventing load from falling slowly or bypassing oil drift
- Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures
- Integrated overload protection valve keeps from overloading the system
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint is oil, grease and dirt-resistant for easy clean up
- Extra tall working range for versatility
- Pair of bed plates included
BSP100TA Specifications
- Safe Working Capacity: 100,000kg
- Working Range: 113-813mm
- Overall Height: 1848mm
- Overall Width: 1250mm
- Overall Depth: 990mm
- Bed Width: 787mm
- Bed Surface Depth: 342mm
- Piston Ram Stroke: 300mm
- Ram Diameter: 140mm
- Width Between Side Posts: 268mm
- Bed Height Settings: 6
- Operating Air Pressure: 110-125psi
- Air Inlet: 1/4"NPT
- Nett Weight: 652kg
- Crate: 2044 x 1150 x 524mm
- Gross Weight: 762kg
