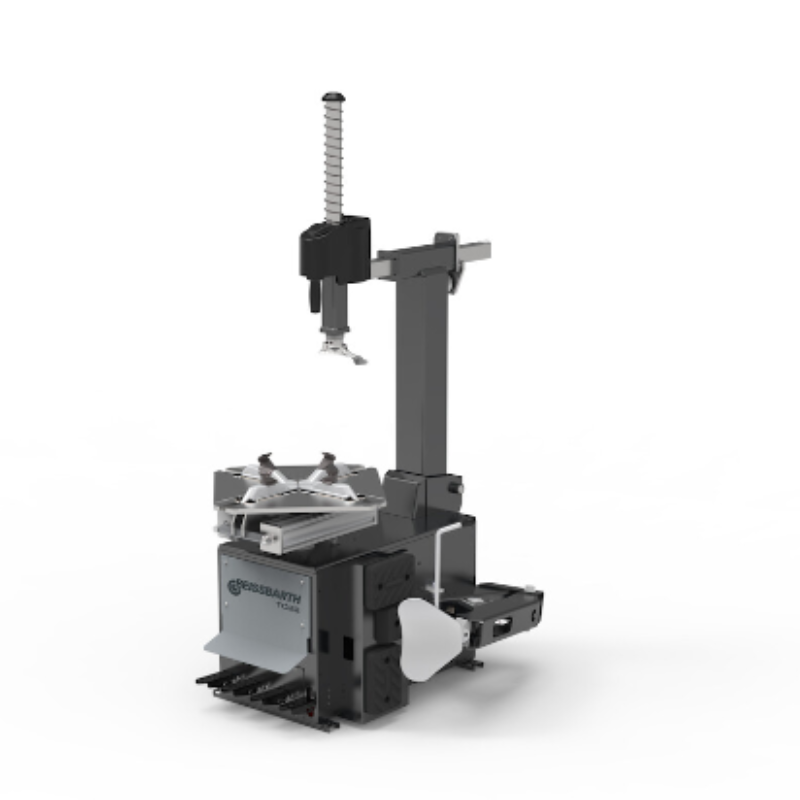

Beissbarth TC22 Tyre Changing Machine
Talk to an Expert
Buy with confidence. Ask a real garage expert.
Make Tyre Changes Easy with the Beissbarth TC22
Bring German reliability to your workshop with the Beissbarth TC22, a compact and robust TC22 Tyre Changer built for everyday tyre service. This TC 22 Tyre Machine is perfect for smaller garages, mobile fitters or anyone who needs a straightforward, no-fuss solution for changing standard passenger and light commercial tyres.
What Sets the TC22 Tyre Changer Apart?
The Beissbarth TC22 is all about simplicity and solid performance. Featuring a fixed vertical column and a manually adjustable mounting arm, this machine is designed for easy operation and low maintenance. The self-centring turntable handles rims from 10" to 20" (external clamping) and up to 23" (internal), making it a versatile fit for most cars and vans. The powerful bead breaker with a three-way adjustable blade and a non-slip rubber pad ensures safe, damage-free tyre removal every time.
Manual swing-arm design for quick, straightforward use
Clamping range: 10"- 20" (external), up to 23" (internal)
Handles wheels up to 39" in diameter and 13" wide
Reliable 400V motor and pedal-operated controls
Compact footprint for smaller workshops or mobile setups
Why Choose the TC 22 Tyre Machine?
The TC 22 Tyre Machine is built for Aussie workshops that want proven German engineering without the bells and whistles. Its simple design means fewer moving parts, less maintenance and more uptime. If you need a tyre changer that just works, day in and day out, the Beissbarth TC22 is a smart, budget-friendly choice.
Durable build for long service life
Easy to operate and maintain
Ideal for standard passenger and light commercial tyres
Backed by Beissbarth’s reputation for quality
Make tyre changes easy and reliable with the Beissbarth TC22 - the Tyre Changer trusted by professionals for everyday jobs.
Beissbarth TC22 Warranty
One Year (12-Months) Warranty
TC22 Features
Square turntable with automatic centering jaws
• Clamping range from 10-25"
• Double 80mm cylinders for maximum clamping power
• 2 rotation speeds: 8 & 16 rpm
• Square shape for easier lever use
Robust mounting column and head
• Easy tilting via pedal
• Quick vertical and horizontal movement of arm
• Pneumatic locking
Powerful bead breaker side shovel
• Quick and effective loosening of the bead
• Up to 12" tyre width
• Three-way adjustable blade
• Controlled via pedal
• Anti-skid rubber pad protects tyre and rim
Full control with four pedals
• Pedal control for rotation, side shovel, column tilting, and clamping
• Removable pedal unit for easier maintenance
High rigidity by design
• Full metal pedals
• Powerful 50x50mm horizontal arm
• Metal front cover
Tyre inflation via claws
• Fast and secure gripping of the bead on the rim
• Both hands free during inflation and bead seating
• Minimizes the risk of air leaks or tire bursts
• Easy tire inflation via claws
• 18-litre air tank
Upgrade options:
• TCX.PRO assistance column
• Side lift
• Tubeless inflation kit
• Roller board
Note: unit comes with disassembled pole
Scope of deliveries:
• 5x front head protection
• 2x rear head protection
• Inflation gun
• Standard lever
• Brush
• 400V plug
TC22 Specifications
Max. wheel diameter - 39" | 1000mm
Operating pressure - 8 - 12 bar
Rapid inflation
Max. wheel width - 12" | 305mm
Length - 1360 mm
Height - 1850 mm
Width - 930 mm
Power supply - 400V | 3Ph | 50-60Hz
Motor power - 0,8 - 1,1 kW
Max. clamping capacity - 25 "
Max. torque - 1200 Nm
Space requirement width - 1240 mm
Space requirement length - 1700 mm
Rotation speed - 8 | 16 rpm
Packaging length - 750 mm
Packaging width - 1100 mm
Packaging height - 1100 mm
Min. clamping capacity - 10 "
Number of mounting speeds - 2
Clamping device design
Clamping plate
Min. inner clamping range - 12 "
Max. inner clamping range - 25 "
Min. outer clamping range - 10 "
Max. outer clamping range - 22 "
Mounting head design with tire lever
Mounting arm design - moveable
Mounting column design - tiltable
Bead breaker cylinder force - 25000N @ 10bar
Bead breaker force on shovel - 13000N @ 10bar
Tyre inflation
Claw inflation
Turntable height - 670 mm
Bead breaker operation - foot control
Stackable - 2 Piece(s)
